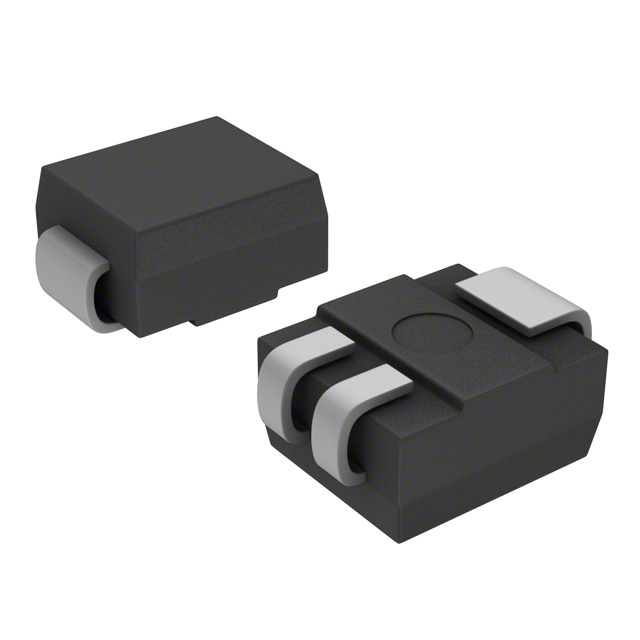

S602CSRP
SCR 1.5A 600V COMPAKManufacturer: Littelfuse Inc.
Categories: SCRs
Quality Control: Learn More
SCR 600 V 1.5 A Sensitive Gate
Additional Information
Series: SCRRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| SCR Type | Sensitive Gate |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 3 mA |
| Current - Gate Trigger (Igt) (Max) | 100 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 12.5A, 15A |
| Current - On State (It (AV)) (Max) | 950 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Voltage - On State (Vtm) (Max) | 1.7 V |
| Current - On State (It (RMS)) (Max) | 1.5 A |
| Voltage - Off State | 600 V |
