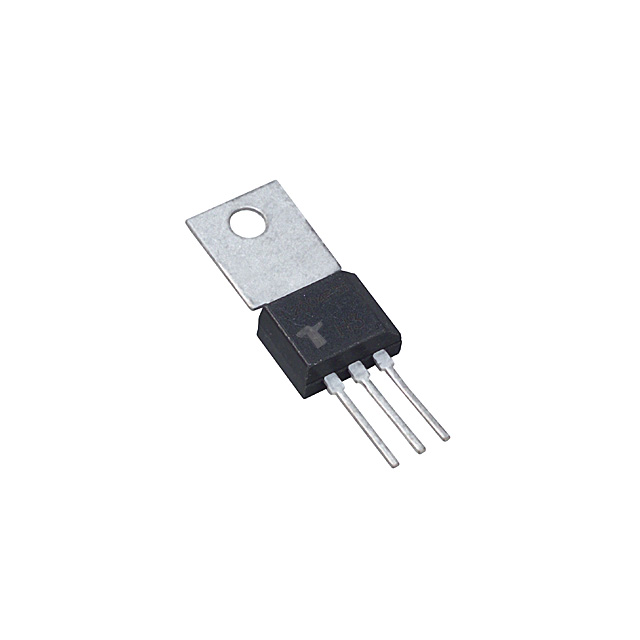

Littelfuse Inc. S4010FS21 is a sensitive gate Silicon Controlled Rectifier (SCR) designed for through-hole mounting in a TO-202 package with a short tab. This component offers a repetitive peak off-state voltage (VDRM) of 400V and an average on-state current (IT(AV)) of 6.4A, with an RMS on-state current (IT(RMS)) of 10A. Its sensitive gate characteristic is defined by a maximum gate trigger current (IGT) of 200 µA and a maximum gate trigger voltage (VGT) of 800 mV. The device exhibits a maximum holding current (IH) of 6 mA and a low off-state leakage current (IDRM) of 5 µA. Non-repetitive surge current capabilities are rated at 83A and 100A for 50Hz and 60Hz respectively. Operating temperature ranges from -40°C to 110°C. Applications include power control and switching circuits in industrial automation and appliance control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-202 Short Tab |
| Mounting Type | Through Hole |
| SCR Type | Sensitive Gate |
| Operating Temperature | -40°C ~ 110°C |
| Current - Hold (Ih) (Max) | 6 mA |
| Current - Gate Trigger (Igt) (Max) | 200 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 83A, 100A |
| Current - On State (It (AV)) (Max) | 6.4 A |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Voltage - On State (Vtm) (Max) | 1.6 V |
| Current - Off State (Max) | 5 µA |
| Supplier Device Package | TO-202 |
| Current - On State (It (RMS)) (Max) | 10 A |
| Voltage - Off State | 400 V |
