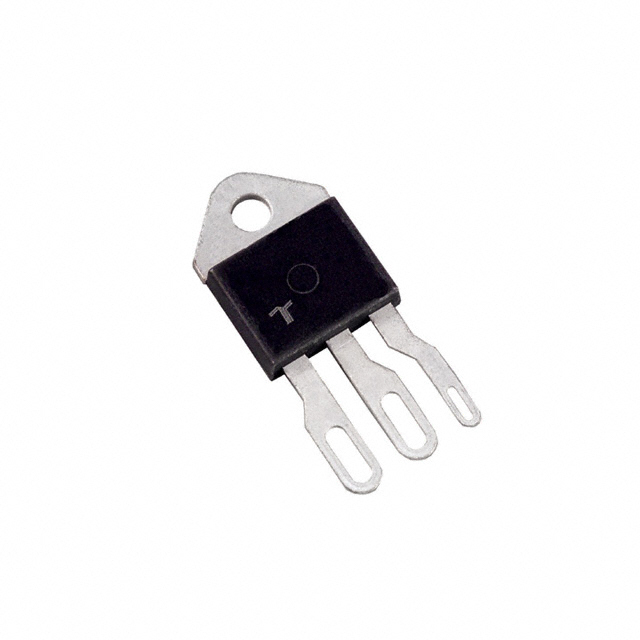

Littelfuse Inc. S2055WTP is a standard recovery SCR with a 200V repetitive peak off-state voltage (VDRM) and a 55A RMS on-state current (IT(AV)). This through-hole component, packaged in a TO-218X, features a 35A average on-state current and 550A/650A non-repetitive surge current capability. The gate trigger current (IGT) is 40mA maximum with a maximum gate trigger voltage (VGT) of 1.5V. It maintains a hold current (IH) of 60mA maximum and an off-state current (IDRM) of 10µA maximum. The on-state voltage drop (VTM) is 1.8V maximum. Operating across a temperature range of -40°C to 125°C, the S2055WTP is suitable for power control applications in industrial and automotive sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-218X-3 |
| Mounting Type | Through Hole |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 60 mA |
| Current - Gate Trigger (Igt) (Max) | 40 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 550A, 650A |
| Current - On State (It (AV)) (Max) | 35 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Voltage - On State (Vtm) (Max) | 1.8 V |
| Current - Off State (Max) | 10 µA |
| Supplier Device Package | TO-218X |
| Current - On State (It (RMS)) (Max) | 55 A |
| Voltage - Off State | 200 V |
