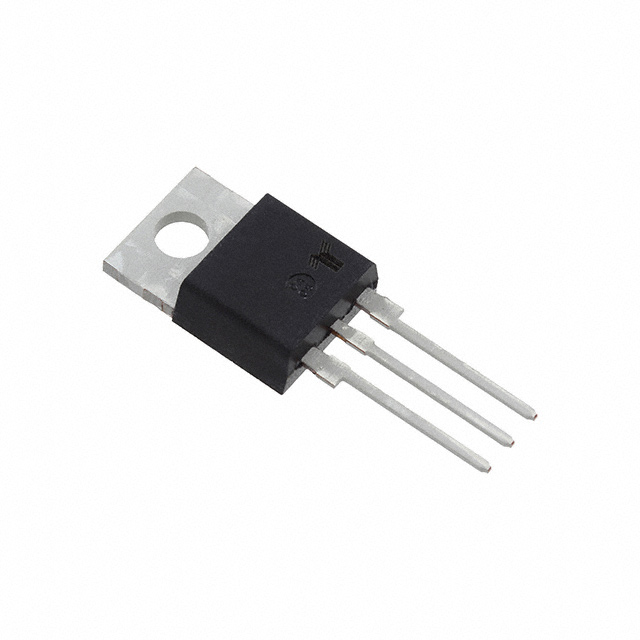

Littelfuse Inc. S2016RTP SCR, a standard recovery thyristor, offers a 200V off-state voltage and 16A RMS on-state current. This through-hole component is housed in a TO-220 package with a non-isolated tab, suitable for demanding applications. Key parameters include a maximum gate trigger current (Igt) of 30mA and a holding current (Ih) of 40mA. The device exhibits a low off-state leakage current of 10µA and an on-state voltage drop (Vtm) of 1.6V at its maximum average current of 10A. It can withstand non-repetitive surge currents of 188A at 50Hz and 225A at 60Hz. Operating temperature range is -40°C to 125°C. This component is commonly found in power control, motor drives, and industrial power supplies.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 40 mA |
| Current - Gate Trigger (Igt) (Max) | 30 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 188A, 225A |
| Current - On State (It (AV)) (Max) | 10 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Voltage - On State (Vtm) (Max) | 1.6 V |
| Current - Off State (Max) | 10 µA |
| Supplier Device Package | TO-220 Non-Isolated Tab |
| Current - On State (It (RMS)) (Max) | 16 A |
| Voltage - Off State | 200 V |
