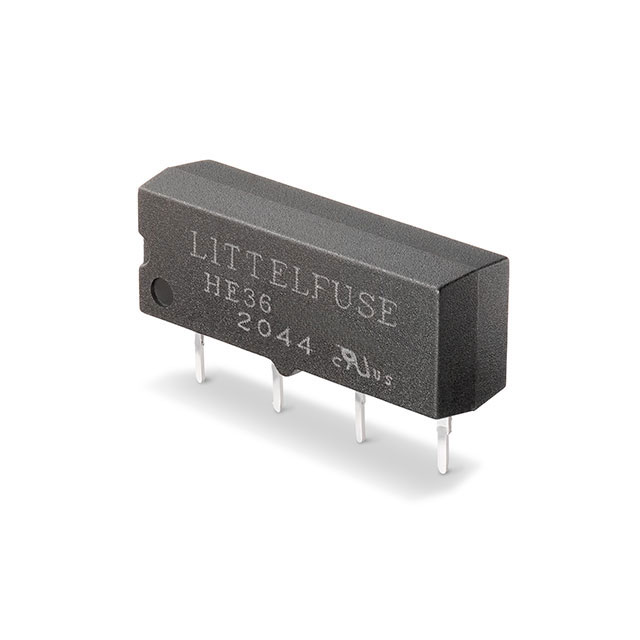

HE3621A0500
RELAY REED SPST 500MA 5VManufacturer: Littelfuse Inc.
Categories: Reed Relays
Quality Control: Learn More
Additional Information
Series: HE3600RoHS Status: ROHS3 CompliantManufacturer Lead Time: 44 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Coil Current | 10 mA |
| Coil Type | Non Latching |
| Seal Rating | - |
| Contact Material | - |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 500 mA |
| Switching Voltage | 200VDC - Max |
| Must Release Voltage | 0.5 VDC |
| Must Operate Voltage | 3.75 VDC |
| Operate Time | 1 ms |
| Release Time | 1 ms |
