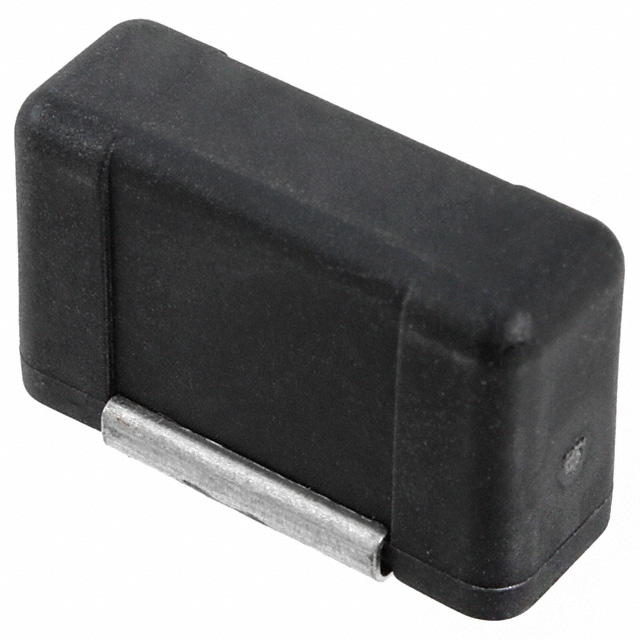

TS600-170F-2
PTC RESET FUSE 60V 170MA 2SMDManufacturer: Littelfuse Inc.
Categories: PTC Resettable Fuses
Quality Control: Learn More
Polymeric PTC Resettable Fuse 60V (600V Int) 170 mA Ih Surface Mount 2-SMD
Additional Information
Series: PolySwitch®, TS600RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD |
| Size / Dimension | 0.742"" L x 0.305"" W (18.85mm x 7.75mm) |
| Mounting Type | Surface Mount |
| Type | Polymeric |
| Operating Temperature | -40°C ~ 85°C |
| Lead Spacing | - |
| Current - Hold (Ih) (Max) | 170 mA |
| Current - Trip (It) | 400 mA |
| Voltage - Max | 60V (600V Int) |
| Ratings | - |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.485"" (12.32mm) |
| Current - Max | 3 A |
| Time to Trip | 10 s |
| Resistance - Initial (Ri) (Min) | 4 Ohms |
| Resistance - Post Trip (R1) (Max) | 18 Ohms |
