TRF600-160
PTC RESET FUSE 250V 160MA RADIALManufacturer: Littelfuse Inc.
Categories: PTC Resettable Fuses
Quality Control: Learn More
Polymeric PTC Resettable Fuse 250V (600V Int) 160 mA Ih Through Hole Radial, Disc
Additional Information
Series: PolySwitch®, TRF600RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.630"" L x 0.236"" W (16.00mm x 6.00mm) |
| Mounting Type | Through Hole |
| Type | Polymeric |
| Operating Temperature | -40°C ~ 85°C |
| Lead Spacing | 0.197"" (5.00mm) |
| Current - Hold (Ih) (Max) | 160 mA |
| Current - Trip (It) | 320 mA |
| Voltage - Max | 250V (600V Int) |
| Ratings | - |
| Height - Seated (Max) | 0.496"" (12.60mm) |
| Thickness (Max) | - |
| Current - Max | 60 A |
| Time to Trip | 18 s |
| Resistance - Initial (Ri) (Min) | 4 Ohms |
| Resistance - Post Trip (R1) (Max) | 18 Ohms |
Request a Quote
Clients Also Buy

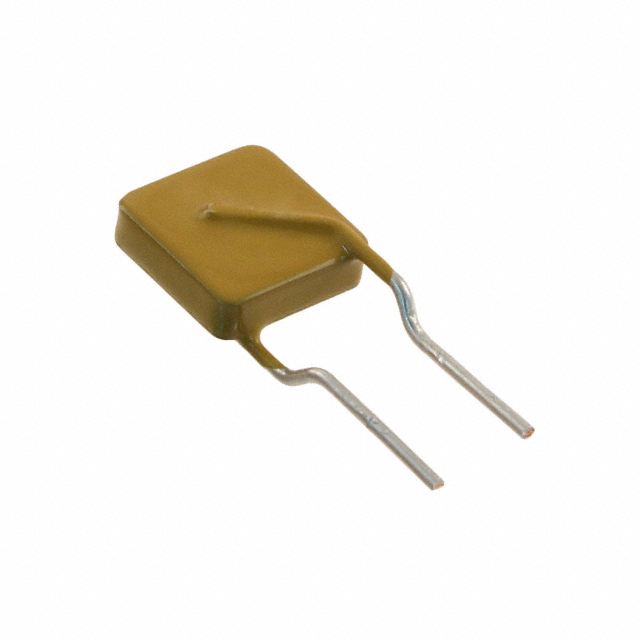

TRF600-150
