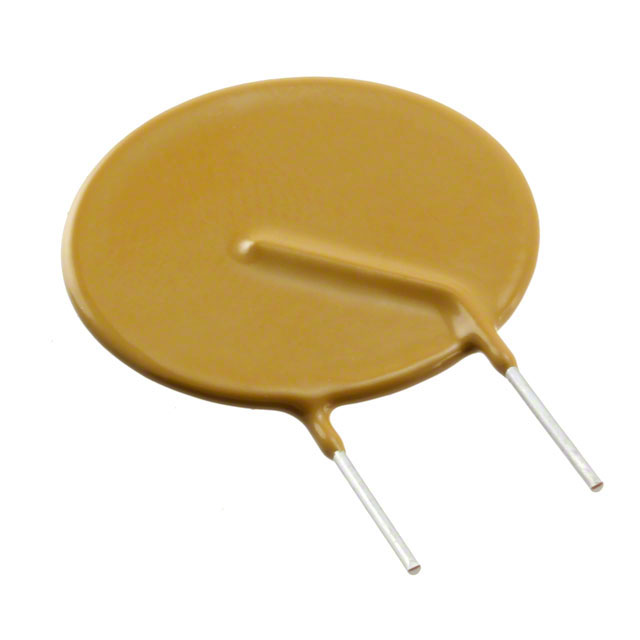

RXEF375
PTC RESET FUSE 72V 3.75A RADIALManufacturer: Littelfuse Inc.
Categories: PTC Resettable Fuses
Quality Control: Learn More
Polymeric PTC Resettable Fuse 72V 3.75 A Ih Through Hole Radial, Disc
Additional Information
Series: PolySwitch®, RXEFRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | Radial, Disc |
| Size / Dimension | 1.071"" Dia x 0.118"" T (27.20mm x 3.00mm) |
| Mounting Type | Through Hole |
| Type | Polymeric |
| Operating Temperature | -40°C ~ 85°C |
| Lead Spacing | 0.400"" (10.15mm) |
| Current - Hold (Ih) (Max) | 3.75 A |
| Current - Trip (It) | 7.5 A |
| Voltage - Max | 72V |
| Ratings | - |
| Height - Seated (Max) | 1.252"" (31.80mm) |
| Thickness (Max) | - |
| Current - Max | 40 A |
| Time to Trip | 24 s |
| Resistance - Initial (Ri) (Min) | 30 mOhms |
| Resistance - Post Trip (R1) (Max) | 80 mOhms |
