RUEF500-2
PTC RESET FUSE 30V 5A RADIALManufacturer: Littelfuse Inc.
Categories: PTC Resettable Fuses
Quality Control: Learn More
Polymeric PTC Resettable Fuse 30V 5 A Ih Through Hole Radial, Disc
Additional Information
Series: PolySwitch®, RUEFRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.551"" L x 0.120"" W (14.00mm x 3.00mm) |
| Mounting Type | Through Hole |
| Type | Polymeric |
| Operating Temperature | -40°C ~ 85°C |
| Lead Spacing | 0.400"" (10.15mm) |
| Current - Hold (Ih) (Max) | 5 A |
| Current - Trip (It) | 10 A |
| Voltage - Max | 30V |
| Ratings | - |
| Height - Seated (Max) | 0.949"" (24.10mm) |
| Thickness (Max) | - |
| Current - Max | 100 A |
| Time to Trip | 14.5 s |
| Resistance - Initial (Ri) (Min) | 10 mOhms |
| Resistance - Post Trip (R1) (Max) | 50 mOhms |
Request a Quote
Clients Also Buy

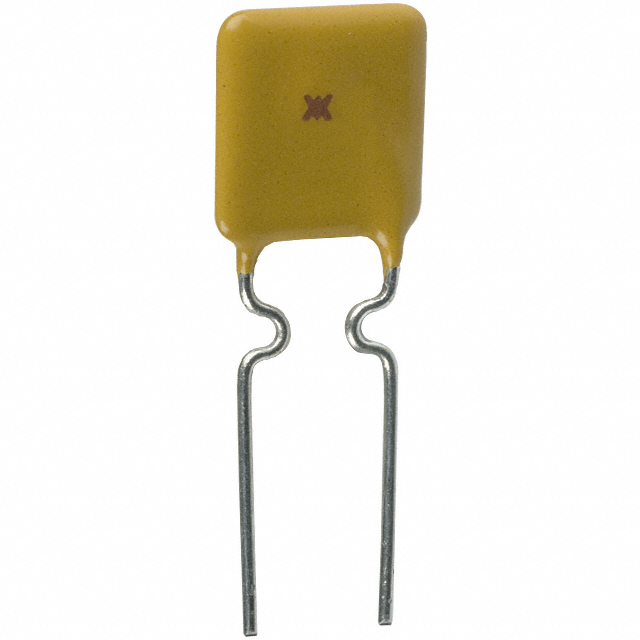

RUEF185-2
