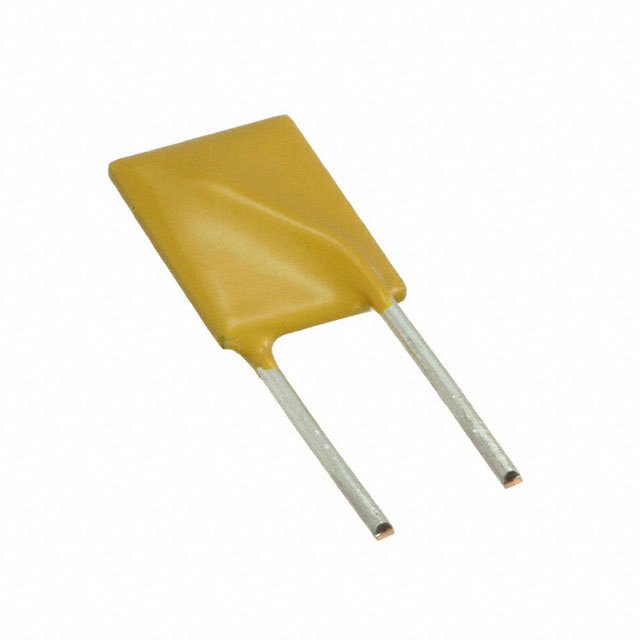

RKEF500-1
PTC RESET FUSE 60V 5A RADIALManufacturer: Littelfuse Inc.
Categories: PTC Resettable Fuses
Quality Control: Learn More
Polymeric PTC Resettable Fuse 60V 5 A Ih Through Hole Radial, Disc
Additional Information
Series: PolySwitch®, RKEFRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.949"" L x 0.118"" W (24.10mm x 3.00mm) |
| Mounting Type | Through Hole |
| Type | Polymeric |
| Operating Temperature | -40°C ~ 85°C |
| Lead Spacing | 0.400"" (10.15mm) |
| Current - Hold (Ih) (Max) | 5 A |
| Current - Trip (It) | 10 A |
| Voltage - Max | 60V |
| Ratings | - |
| Height - Seated (Max) | 1.142"" (29.00mm) |
| Thickness (Max) | - |
| Current - Max | 40 A |
| Time to Trip | 28 s |
| Resistance - Initial (Ri) (Min) | 12 mOhms |
| Resistance - Post Trip (R1) (Max) | 50 mOhms |
