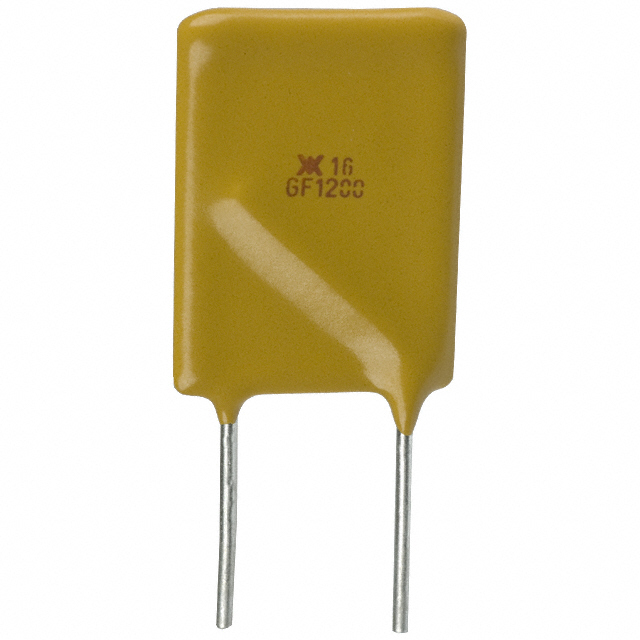

RGEF1200
PTC RESET FUSE 16V 12A RADIALManufacturer: Littelfuse Inc.
Categories: PTC Resettable Fuses
Quality Control: Learn More
Polymeric PTC Resettable Fuse 16V 12 A Ih Through Hole Radial, Disc
Additional Information
Series: PolySwitch®, RGEFRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.670"" L x 0.520"" W (16.95mm x 2.90mm) |
| Mounting Type | Through Hole |
| Type | Polymeric |
| Operating Temperature | -40°C ~ 85°C |
| Lead Spacing | 0.400"" (10.15mm) |
| Current - Hold (Ih) (Max) | 12 A |
| Current - Trip (It) | 20.4 A |
| Voltage - Max | 16V |
| Ratings | - |
| Height - Seated (Max) | 1.102"" (28.00mm) |
| Thickness (Max) | - |
| Current - Max | 100 A |
| Time to Trip | 7.5 s |
| Resistance - Initial (Ri) (Min) | 3.3 MOhms |
| Resistance - Post Trip (R1) (Max) | 8.6 mOhms |
