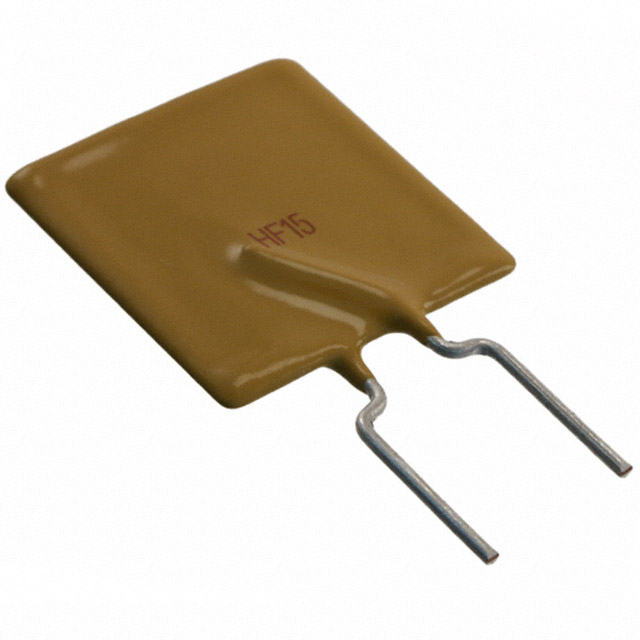

AHRF1500
PTC RESET FUSE 16V 15A RADIALManufacturer: Littelfuse Inc.
Categories: PTC Resettable Fuses
Quality Control: Learn More
Polymeric PTC Resettable Fuse 16V 15 A Ih Through Hole Radial, Disc
Additional Information
Series: PolySwitch®, AHRFRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.925"" L x 0.138"" W (23.50mm x 3.50mm) |
| Mounting Type | Through Hole |
| Type | Polymeric |
| Operating Temperature | -40°C ~ 125°C |
| Lead Spacing | 0.400"" (10.15mm) |
| Current - Hold (Ih) (Max) | 15 A |
| Current - Trip (It) | 33 A |
| Voltage - Max | 16V |
| Ratings | - |
| Height - Seated (Max) | 1.130"" (28.70mm) |
| Thickness (Max) | - |
| Grade | Automotive |
| Current - Max | 100 A |
| Time to Trip | 20 s |
| Resistance - Initial (Ri) (Min) | 2.7 MOhms |
| Resistance - Post Trip (R1) (Max) | 9.2 mOhms |
| Qualification | AEC-Q200 |
