72R185XMR
PTC RESET FUSE 72V 1.85A RADIALManufacturer: Littelfuse Inc.
Categories: PTC Resettable Fuses
Quality Control: Learn More
Polymeric PTC Resettable Fuse 72V 1.85 A Ih Through Hole Radial, Disc
Additional Information
Series: POLY-FUSE®, 72RRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.660"" Dia x 0.122"" T (16.76mm x 3.10mm) |
| Mounting Type | Through Hole |
| Type | Polymeric |
| Operating Temperature | -40°C ~ 85°C |
| Lead Spacing | 0.201"" (5.10mm) |
| Current - Hold (Ih) (Max) | 1.85 A |
| Current - Trip (It) | 3.7 A |
| Voltage - Max | 72V |
| Ratings | - |
| Height - Seated (Max) | 0.906"" (23.00mm) |
| Thickness (Max) | - |
| Current - Max | 40 A |
| Time to Trip | 12.6 s |
| Resistance - Initial (Ri) (Min) | 80 mOhms |
| Resistance - Post Trip (R1) (Max) | 190 mOhms |
Request a Quote
Clients Also Buy
72R135XMR
PTC RESET FUSE 72V 1.35A RADIAL

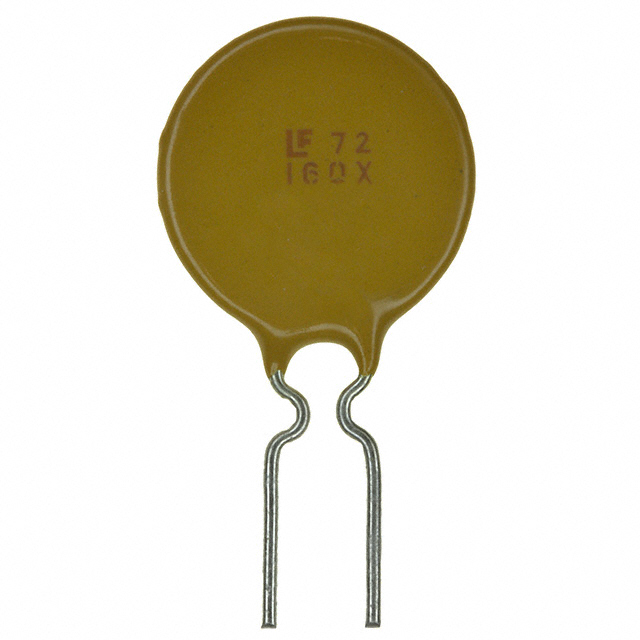

72R160XF
PTC RESET FUSE 72V 1.6A RADIAL

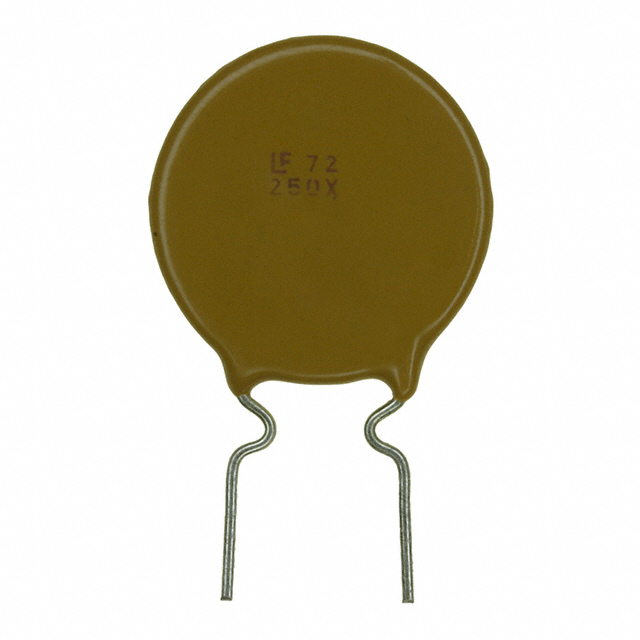

72R250XF
