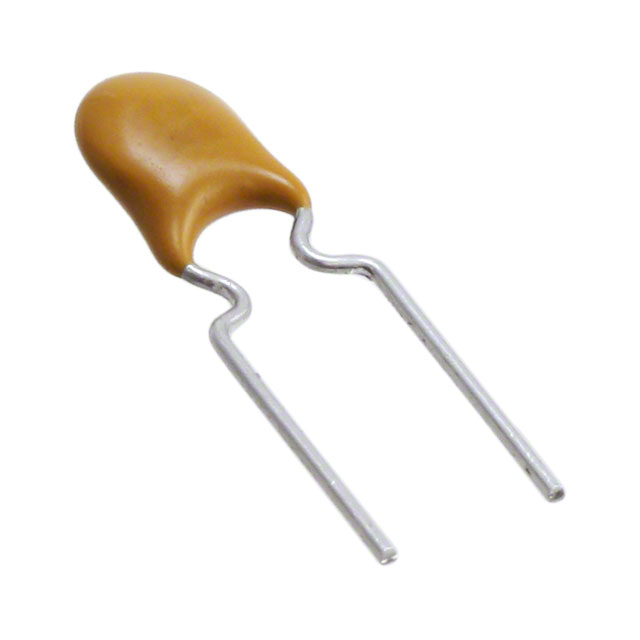

60R025XU
PTC RESET FUSE 60V 250MA RADIALManufacturer: Littelfuse Inc.
Categories: PTC Resettable Fuses
Quality Control: Learn More
Polymeric PTC Resettable Fuse 60V 250 mA Ih Through Hole Radial, Disc
Additional Information
Series: POLY-FUSE®, 60RRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.291"" Dia x 0.122"" T (7.40mm x 3.10mm) |
| Mounting Type | Through Hole |
| Type | Polymeric |
| Operating Temperature | -40°C ~ 85°C |
| Lead Spacing | 0.201"" (5.10mm) |
| Current - Hold (Ih) (Max) | 250 mA |
| Current - Trip (It) | 500 mA |
| Voltage - Max | 60V |
| Ratings | - |
| Height - Seated (Max) | 0.500"" (12.70mm) |
| Thickness (Max) | - |
| Current - Max | 40 A |
| Time to Trip | 2.5 s |
| Resistance - Initial (Ri) (Min) | 1.25 Ohms |
| Resistance - Post Trip (R1) (Max) | 3 Ohms |
