30R600UF
PTC RESET FUSE 30V 6A RADIALManufacturer: Littelfuse Inc.
Categories: PTC Resettable Fuses
Quality Control: Learn More
Polymeric PTC Resettable Fuse 30V 6 A Ih Through Hole Radial, Disc
Additional Information
Series: POLY-FUSE®, 30RRoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.650"" L x 0.118"" W (16.50mm x 3.00mm) |
| Mounting Type | Through Hole |
| Type | Polymeric |
| Operating Temperature | -40°C ~ 85°C |
| Lead Spacing | 0.402"" (10.20mm) |
| Current - Hold (Ih) (Max) | 6 A |
| Current - Trip (It) | 12 A |
| Voltage - Max | 30V |
| Ratings | - |
| Height - Seated (Max) | 1.055"" (26.80mm) |
| Thickness (Max) | - |
| Current - Max | 40 A |
| Time to Trip | 16 s |
| Resistance - Initial (Ri) (Min) | 5 mOhms |
| Resistance - Post Trip (R1) (Max) | 40 mOhms |
Request a Quote
Clients Also Buy

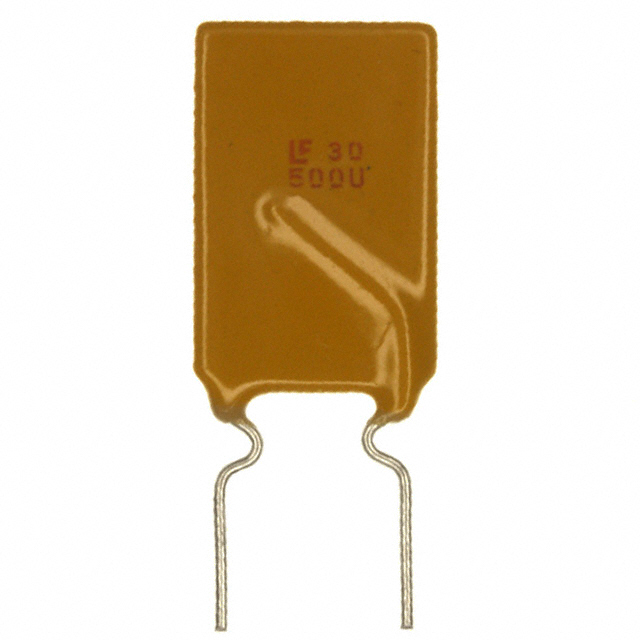

30R500UF
