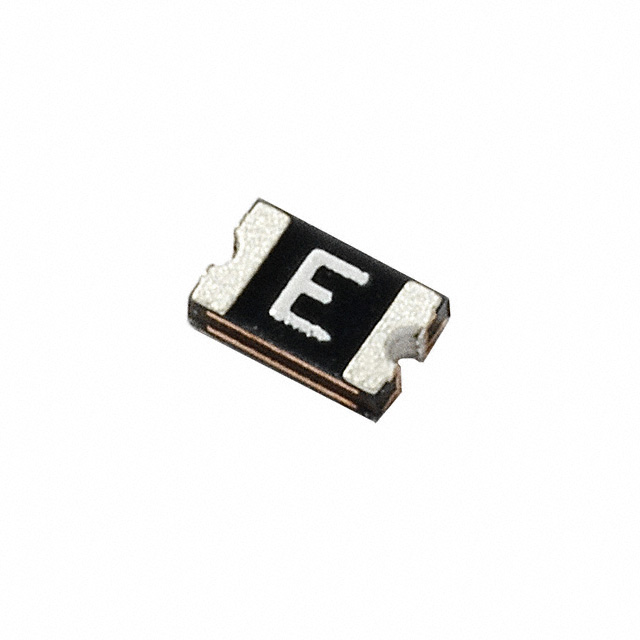

0805L005/30YR
PTC RESET FUSE 30V 50MA 0805Manufacturer: Littelfuse Inc.
Categories: PTC Resettable Fuses
Quality Control: Learn More
Polymeric PTC Resettable Fuse 30V 50 mA Ih Surface Mount 0805 (2012 Metric), Concave
Additional Information
Series: POLY-FUSE®, 0805LRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric), Concave |
| Size / Dimension | 0.083"" L x 0.053"" W (2.10mm x 1.35mm) |
| Mounting Type | Surface Mount |
| Type | Polymeric |
| Operating Temperature | -40°C ~ 85°C |
| Lead Spacing | - |
| Current - Hold (Ih) (Max) | 50 mA |
| Current - Trip (It) | 150 mA |
| Voltage - Max | 30V |
| Ratings | - |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.049"" (1.25mm) |
| Grade | Automotive |
| Current - Max | 40 A |
| Time to Trip | 1.5 s |
| Resistance - Initial (Ri) (Min) | 3.6 Ohms |
| Resistance - Post Trip (R1) (Max) | 20 Ohms |
| Qualification | AEC-Q200 |
Request a Quote
Clients Also Buy
RHEF900
PTC RESET FUSE 16V 9A RADIAL

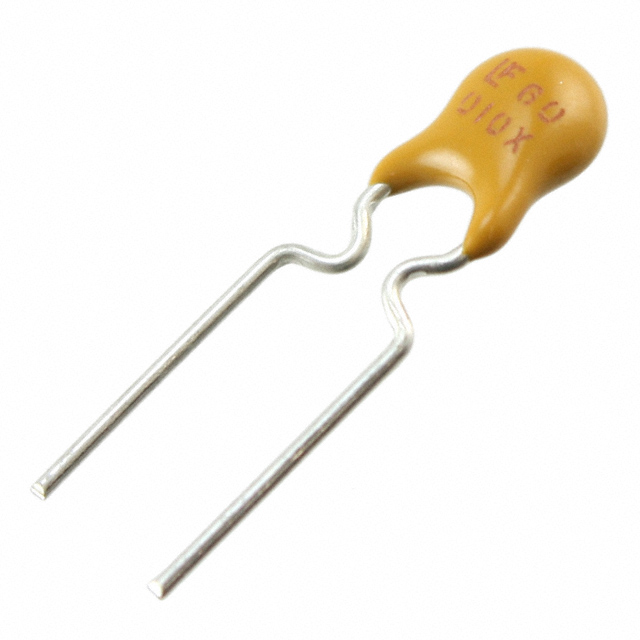

60R010XU
