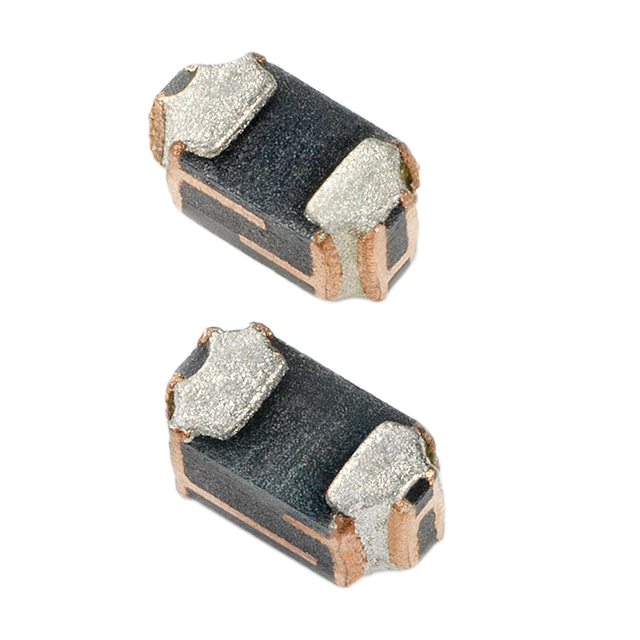

0402L020SLKR
PTC RESET FUSE 6V 200MA 0402Manufacturer: Littelfuse Inc.
Categories: PTC Resettable Fuses
Quality Control: Learn More
Polymeric PTC Resettable Fuse 6V 200 mA Ih Surface Mount 0402 (1005 Metric), Concave
Additional Information
Series: POLY-FUSE®, LoRhoRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0402 (1005 Metric), Concave |
| Size / Dimension | 0.039"" L x 0.020"" W (1.00mm x 0.50mm) |
| Mounting Type | Surface Mount |
| Type | Polymeric |
| Operating Temperature | -40°C ~ 85°C |
| Lead Spacing | - |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Trip (It) | 500 mA |
| Voltage - Max | 6V |
| Ratings | - |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.024"" (0.60mm) |
| Current - Max | 40 A |
| Time to Trip | 1 s |
| Resistance - Initial (Ri) (Min) | 100 MOhms |
| Resistance - Post Trip (R1) (Max) | 1.25 Ohms |
Request a Quote
