24452-BX
CVP RELAYManufacturer: Littelfuse Inc.
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More

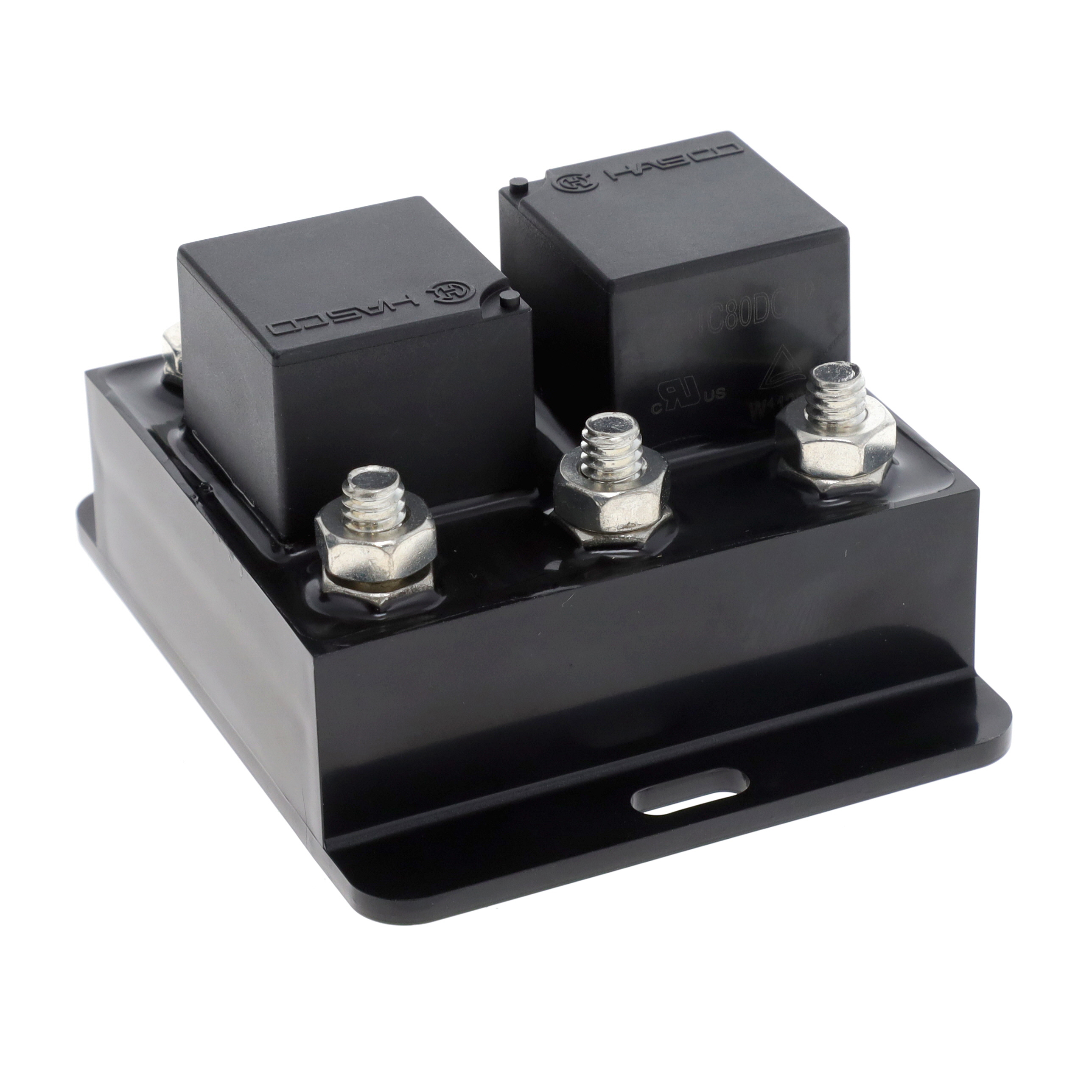

General Purpose Relay SPDT (1 Form C) 12VDC Coil Chassis Mount
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Mounting Type | Chassis Mount |
| Coil Voltage | 12VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Stud |
| Relay Type | General Purpose |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Fully |
| Contact Material | - |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 50 A |
| Switching Voltage | 14VDC - Max |
| Must Release Voltage | - |
| Must Operate Voltage | 7.8 VDC |
| Coil Insulation | - |
Request a Quote
