RYC8620-2M
IC PWR SWITCH 1:2 PROT DL 8SOICManufacturer: Littelfuse Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Littelfuse Inc. RYC8620-2M is a 1:2 protected dual power switch designed for efficient power distribution. This surface-mount component, housed in an 8-SOIC package, offers a maximum output current of 600mA per channel. Key fault protection features include fixed current limiting, over-temperature protection, reverse current protection, and undervoltage lockout (UVLO). The device provides slew rate control for predictable power-up behavior and includes a status flag for monitoring. With a low on-resistance of 100mOhm (typical), it is suitable for load voltages ranging from 3V to 5.5V. This component finds application in automotive and industrial electronics, particularly in systems requiring robust USB power management and protection. The interface is controlled via an ON/OFF input, and the output configuration is high-side.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Slew Rate Controlled, Status Flag |
| Packaging | Bulk |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | ON/OFF |
| Switch Type | USB Switch |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 100mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 3V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 600mA |
| Ratio - Input:Output | 1:2 |
| Supplier Device Package | - |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO |
Request a Quote
Clients Also Buy
IXDD614YI
IC PWR DRIVER 1:1 TO263-5

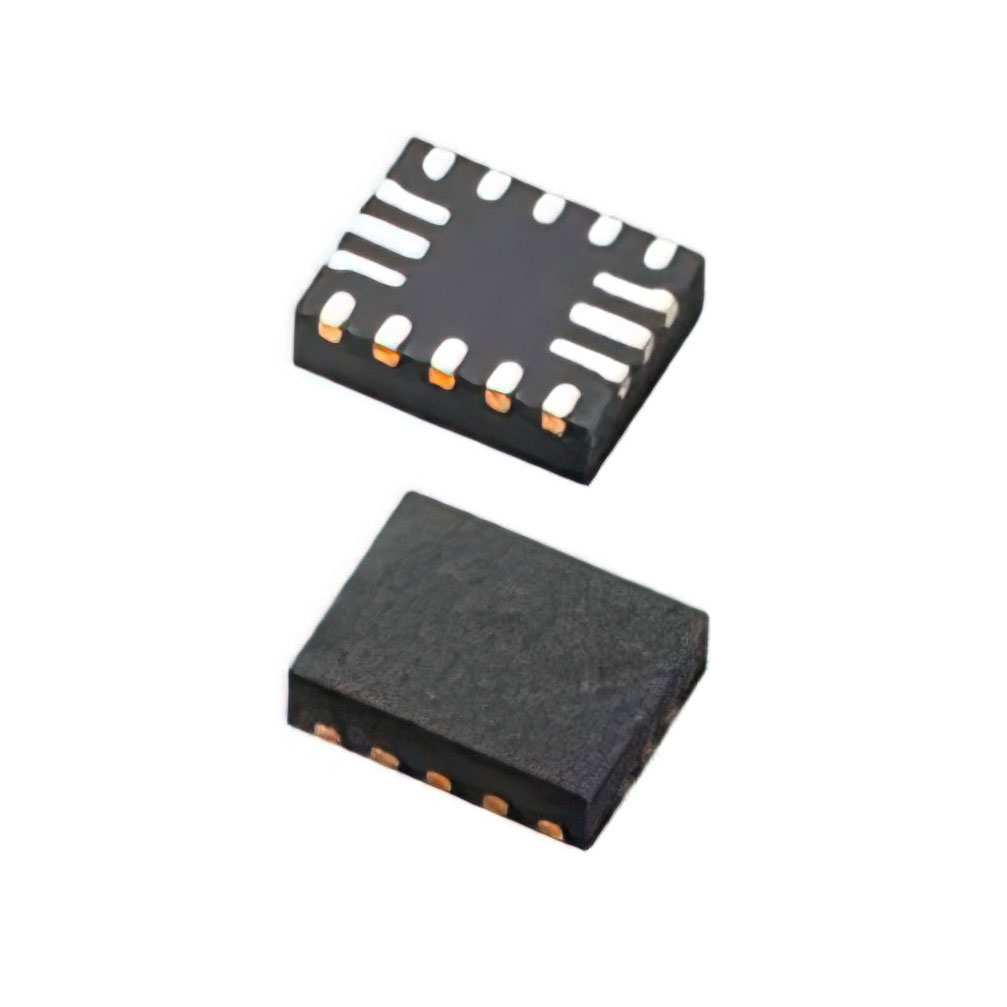

LS24062RQ23
