KR103G0J
THERMISTOR NTC 10KOHM 3712K 0805Manufacturer: Littelfuse Inc.
Categories: NTC Thermistors
Quality Control: Learn More

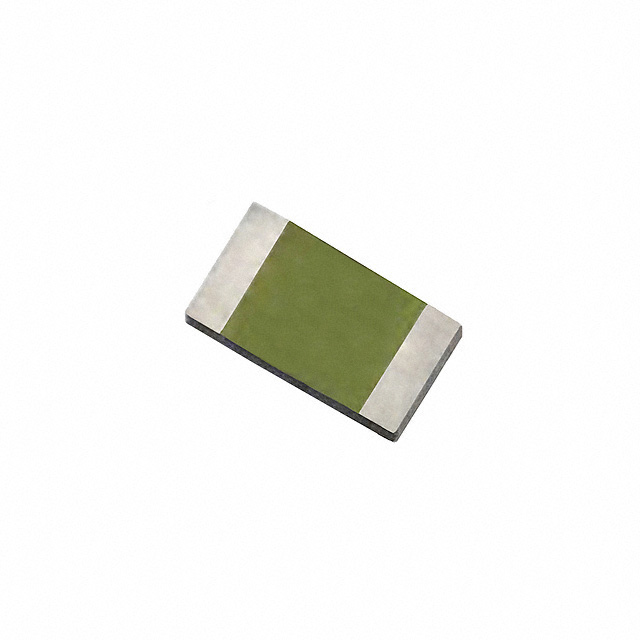

Littelfuse Inc. KR Series NTC Thermistor, part number KR103G0J. This 0805 (2012 metric) surface mount device features a nominal resistance of 10 kOhms at 25°C with a ±5% tolerance. The thermistor exhibits a B25/50 value of 3712K and a B25/85 value of 3750K, providing precise temperature sensing capabilities. Operating within a temperature range of -40°C to 125°C, the KR103G0J is rated for a maximum power dissipation of 300 mW. Its construction is suitable for automated assembly processes. This component finds application in automotive, industrial control, and consumer electronics for temperature monitoring and compensation.
Additional Information
Series: KRRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 0805 (2012 Metric) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| B0/50 | - |
| B25/50 | 3712K |
| B25/85 | 3750K |
| B25/100 | - |
| B Value Tolerance | - |
| Resistance in Ohms @ 25°C | 10k |
| Resistance Tolerance | ±5% |
| B25/75 | - |
| Length - Lead Wire | - |
| Power - Max | 300 mW |
