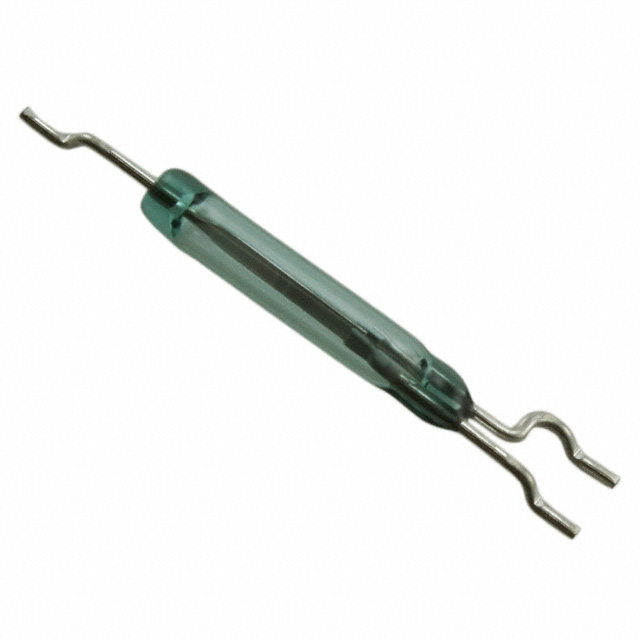

MDSM-DTR-20-25
SWITCH REED SPDT 180MA 120VManufacturer: Littelfuse Inc.
Categories: Magnetic, Reed Switches
Quality Control: Learn More
Glass Body Reed Switch SPDT 20 ~ 25AT Operate Range 5W 180mA (AC), 250mA (DC) 120 V Surface Mount
Additional Information
Series: MDSM-DTRoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Circuit | SPDT |
| Type | Glass Body Reed |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Gull Wing |
| Length - Overall | 1.000"" (25.40mm) |
| Power - Rated | 5W |
| Height Above Board | 0.101"" (2.56mm) |
| Current - Switching | 180mA (AC), 250mA (DC) |
| Voltage - Switching DC | 175 V |
| Operate Time | 0.7 ms |
| Release Time | 1 ms |
| Size - Body | 0.100"" Dia x 0.580"" L (2.54mm x 14.73mm) |
| Operate Range | 20 ~ 25AT |
| Release Range | - |
| Current - Carry | 1.5A (DC) |
| Voltage - Switching AC | 120 V |
| Capacitance | 1 pF |
