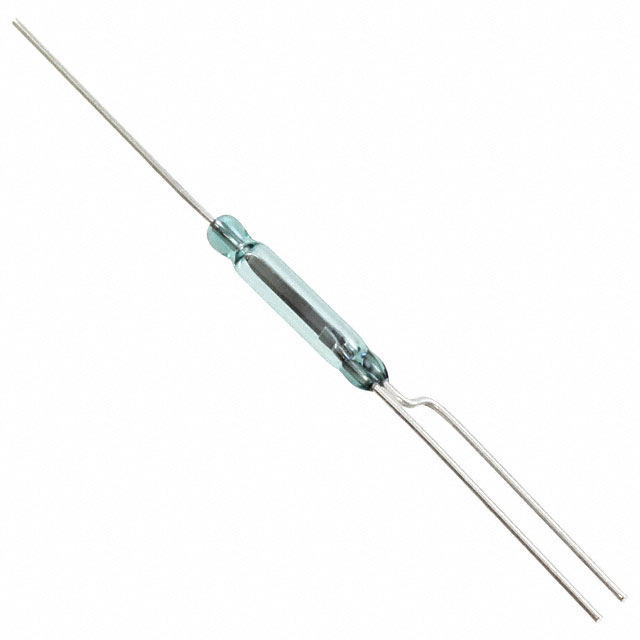

MDRR-DT-20-25-F
SWITCH REED SPDT 180MA 120VManufacturer: Littelfuse Inc.
Categories: Magnetic, Reed Switches
Quality Control: Learn More
Littelfuse Inc. MDRR-DT-20-25-F is a Glass Body SPDT reed switch designed for applications requiring reliable magnetic actuation. This component features an operate range of 20 to 25 AT, with a switching voltage of 120 VAC and 175 VDC. It offers a switching current capability of 180mA AC and 250mA DC, with a power rating of 5W. The switch has an operate time of 0.7ms and a release time of 1ms. Its through-hole mounting and axial termination style facilitate integration into various PCB designs. The MDRR-DT-20-25-F is suitable for use in industrial automation, automotive systems, and security applications. Operating temperature range is -40°C to 125°C.
Additional Information
Series: MDRR-DTRoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Mounting Type | Through Hole |
| Circuit | SPDT |
| Type | Glass Body Reed |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Axial |
| Length - Overall | 2.034"" (51.66mm) |
| Power - Rated | 5W |
| Height Above Board | - |
| Current - Switching | 180mA (AC), 250mA (DC) |
| Voltage - Switching DC | 175 V |
| Operate Time | 0.7 ms |
| Release Time | 1 ms |
| Size - Body | 0.100"" Dia x 0.580"" L (2.54mm x 14.73mm) |
| Operate Range | 20 ~ 25AT |
| Release Range | - |
| Current - Carry | 1.5A (DC) |
| Voltage - Switching AC | 120 V |
| Capacitance | 1 pF |
