MDCG-4-12-23
SWITCH REED SPST-NO 350MA 140VManufacturer: Littelfuse Inc.
Categories: Magnetic, Reed Switches
Quality Control: Learn More

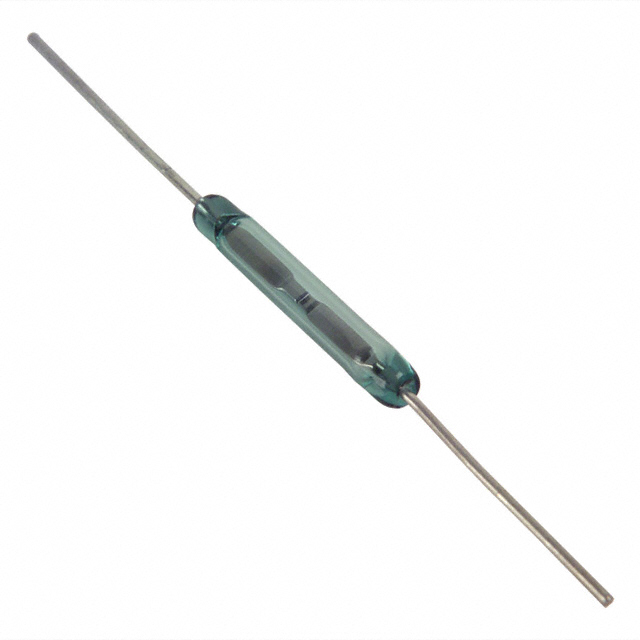

Glass Body Reed Switch SPST-NO 12 ~ 23AT Operate Range 10W 350mA (AC), 500mA (DC) 140 V Through Hole
Additional Information
Series: MDCG-4RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Type | Glass Body Reed |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Axial |
| Length - Overall | 1.590"" (40.39mm) |
| Power - Rated | 10W |
| Height Above Board | - |
| Current - Switching | 350mA (AC), 500mA (DC) |
| Voltage - Switching DC | 200 V |
| Operate Time | 0.6 ms |
| Release Time | 0.2 ms |
| Size - Body | 0.090"" Dia x 0.600"" L (2.28mm x 15.24mm) |
| Operate Range | 12 ~ 23AT |
| Release Range | - |
| Current - Carry | 1.2A (DC) |
| Voltage - Switching AC | 140 V |
| Capacitance | 0.2 pF |
