HA15-2-17-23
SWITCH REED SPST-NO 300MA 265VManufacturer: Littelfuse Inc.
Categories: Magnetic, Reed Switches
Quality Control: Learn More

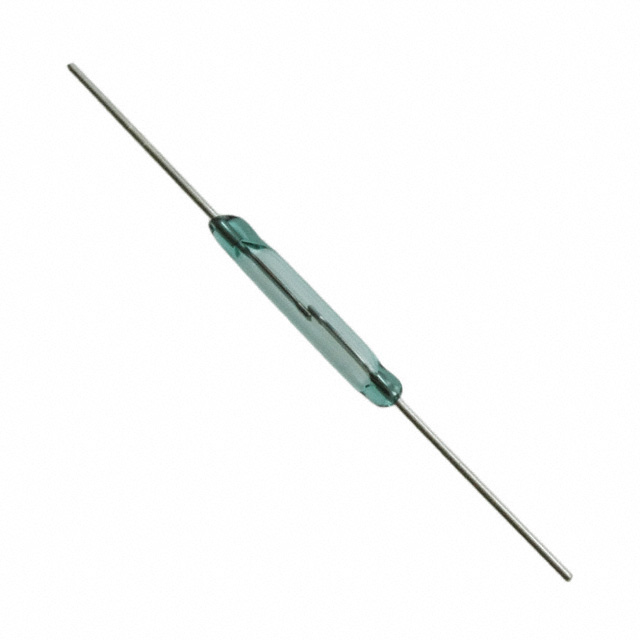

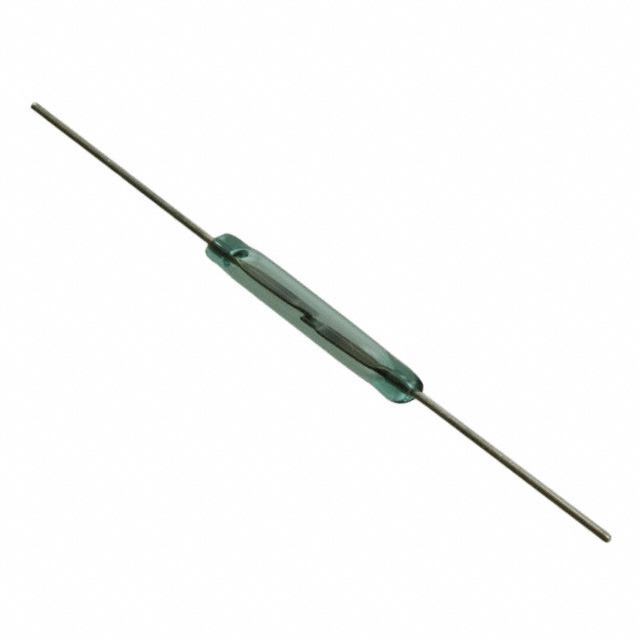

Littelfuse Inc. HA15-2 series glass body reed switch, part number HA15-2-17-23, features a Single Pole Single Throw Normally Open (SPST-NO) configuration. This component offers an operate range of 17 to 23 AT, with a switching current capability of 300mA AC and 400mA DC. The maximum switching voltage is rated at 265V AC and 200V DC. Power dissipation is rated at 10W. The glass body measures 0.090 inches in diameter by 0.600 inches in length. With axial termination and a through-hole mounting type, this reed switch has an operate time of 0.6 ms and a release time of 0.2 ms. Operating temperature range is -20°C to 125°C. This component is suitable for applications in industrial automation, security systems, and automotive electronics.
Additional Information
Series: HA15-2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Type | Glass Body Reed |
| Operating Temperature | -20°C ~ 125°C |
| Termination Style | Axial |
| Length - Overall | 1.590"" (40.39mm) |
| Power - Rated | 10W |
| Height Above Board | - |
| Current - Switching | 300mA (AC), 400mA (DC) |
| Voltage - Switching DC | 200 V |
| Operate Time | 0.6 ms |
| Release Time | 0.2 ms |
| Size - Body | 0.090"" Dia x 0.600"" L (2.28mm x 15.24mm) |
| Operate Range | 17 ~ 23AT |
| Release Range | - |
| Current - Carry | 1.4A (DC) |
| Voltage - Switching AC | 265 V |
| Capacitance | 0.2 pF |
