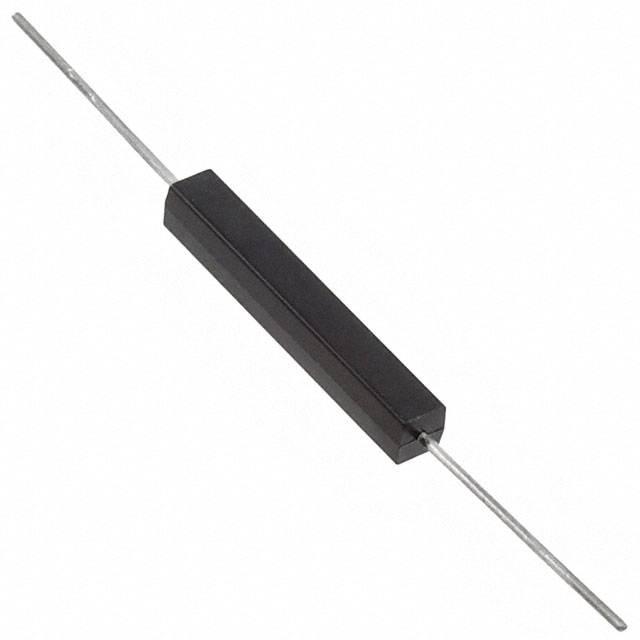

59165-1-S-00-A
SWITCH REED SPST-NO 350MA 140VManufacturer: Littelfuse Inc.
Categories: Magnetic, Reed Switches
Quality Control: Learn More
Molded Body Reed Switch SPST-NO 10 ~ 15AT Operate Range 10W 350mA (AC), 500mA (DC) 140 V Through Hole
Additional Information
Series: 59165RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Type | Molded Body Reed |
| Operating Temperature | -40°C ~ 105°C |
| Termination Style | Axial |
| Length - Overall | 1.590"" (40.39mm) |
| Power - Rated | 10W |
| Height Above Board | - |
| Current - Switching | 350mA (AC), 500mA (DC) |
| Voltage - Switching DC | 200 V |
| Operate Time | 1 ms |
| Release Time | 1 ms |
| Size - Body | 0.630"" L x 0.095"" W x 0.095"" H (16.00mm x 2.40mm x 2.40mm) |
| Operate Range | 10 ~ 15AT |
| Release Range | - |
| Current - Carry | 800mA (DC) |
| Voltage - Switching AC | 140 V |
| Capacitance | 0.3 pF |
Request a Quote
Clients Also Buy

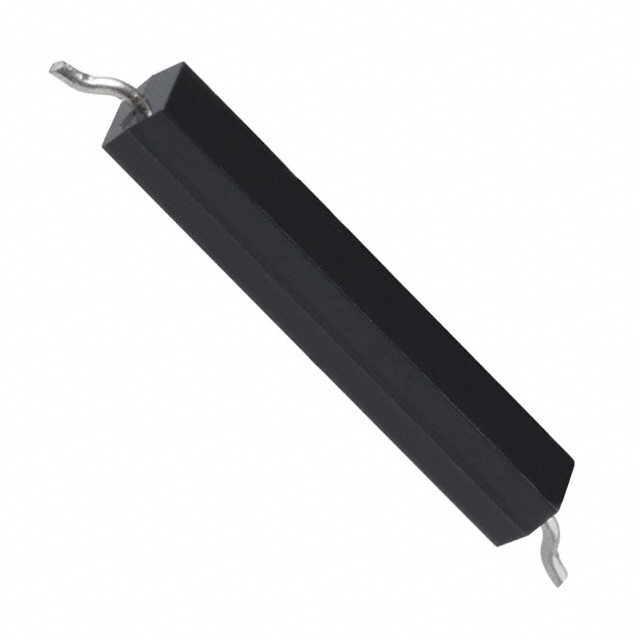

59165-1-S-00-C
