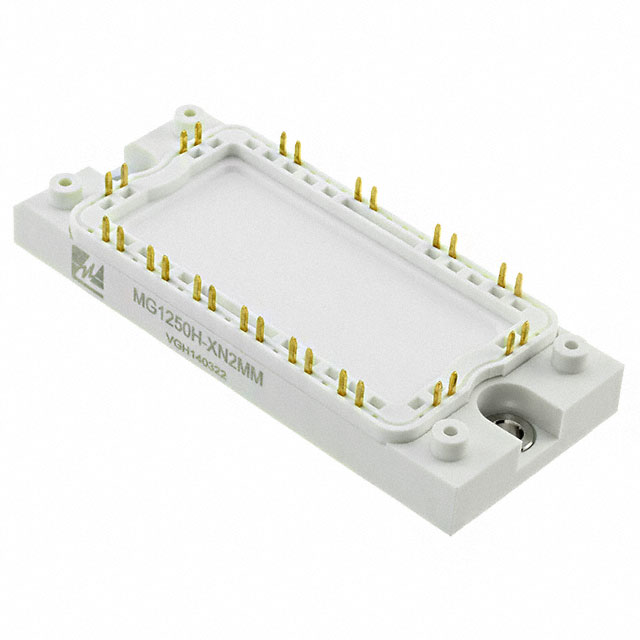

MG1250H-XN2MM
IGBT MOD 1200V 75A 260WManufacturer: Littelfuse Inc.
Categories: IGBT Modules
Quality Control: Learn More
Littelfuse Inc. presents the MG1250H-XN2MM, a robust IGBT Module designed for demanding power applications. This three-phase inverter module features a 1200 V collector-emitter breakdown voltage and a 75 A continuous collector current, with a maximum power dissipation of 260 W. The Trench Field Stop IGBT technology ensures efficient switching performance. Key electrical characteristics include a typical Vce(on) of 1.7V at 15V gate-emitter voltage and 50A collector current, and an input capacitance (Cies) of 3.6 nF at 25V. The module incorporates an NTC thermistor for thermal monitoring and operates across a temperature range of -40°C to 125°C (TJ). Its chassis mount configuration facilitates secure integration into power systems. This component is widely utilized in industrial automation, renewable energy systems, and electric vehicle drivetrains.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Three Phase Inverter |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 1.7V @ 15V, 50A (Typ) |
| NTC Thermistor | Yes |
| Supplier Device Package | Module |
| IGBT Type | Trench Field Stop |
| Current - Collector (Ic) (Max) | 75 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 260 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 3.6 nF @ 25 V |
