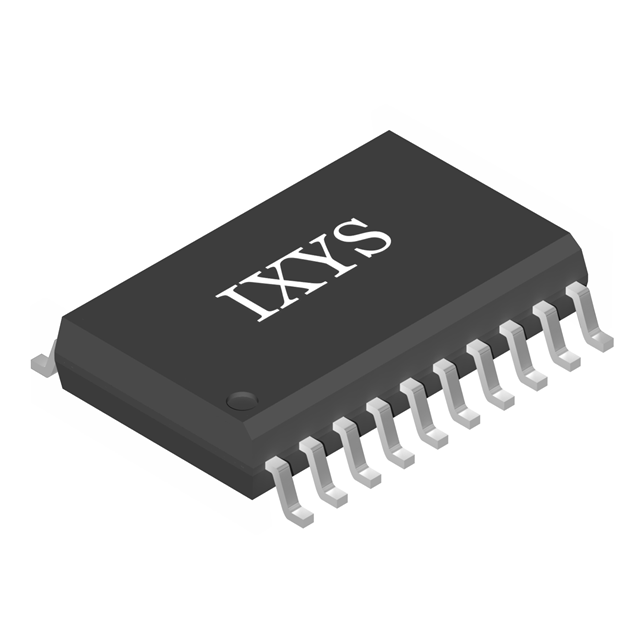

LF2388BTR
IC GATE DRVR HALF-BRIDGE 20SOICManufacturer: Littelfuse Inc.
Categories: Gate Drivers
Quality Control: Learn More
Half-Bridge Gate Driver IC Inverting 20-SOIC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 10V ~ 20V |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Supplier Device Package | 20-SOIC |
| Rise / Fall Time (Typ) | 45ns, 25ns |
| Channel Type | 3-Phase |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 6 |
| Gate Type | IGBT, N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 420mA, 750mA |
| Programmable | Not Verified |
