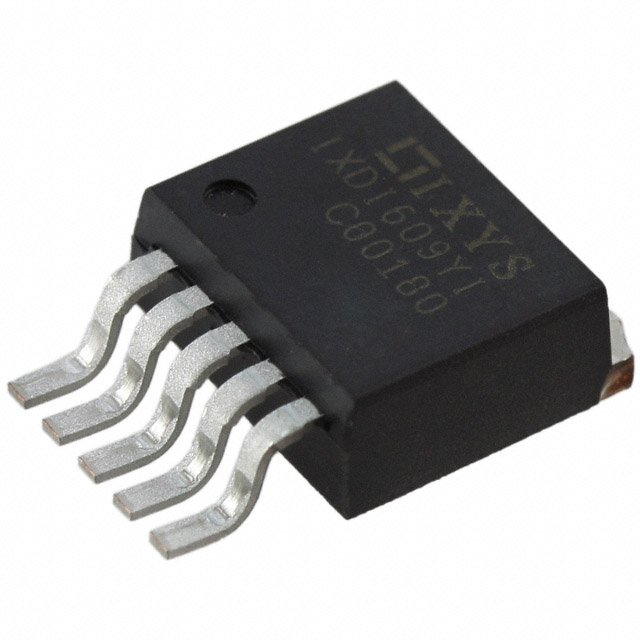

IXDI609YI
IC GATE DRVR LOW-SIDE TO263-5Manufacturer: Littelfuse Inc.
Categories: Gate Drivers
Quality Control: Learn More
Low-Side Gate Driver IC Inverting TO-263-5
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Voltage - Supply | 4.5V ~ 35V |
| Input Type | Inverting |
| Supplier Device Package | TO-263-5 |
| Rise / Fall Time (Typ) | 22ns, 15ns |
| Channel Type | Single |
| Driven Configuration | Low-Side |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 3V |
| Current - Peak Output (Source, Sink) | 9A, 9A |
| Programmable | Not Verified |
