0607063.UXTH500P
FUSE CERM 63A 500VAC 500VDC RADManufacturer: Littelfuse Inc.
Categories: Fuses
Quality Control: Learn More

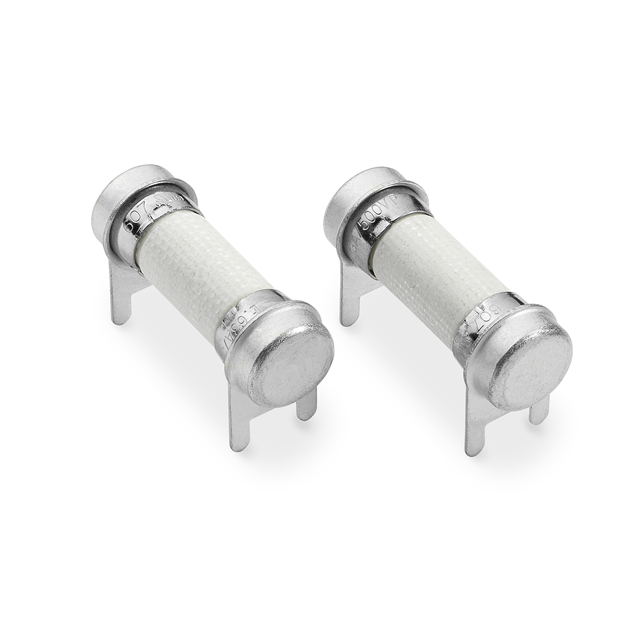

63 A 500 V AC 500 V DC Fuse Cartridge, Ceramic Through Hole Radial Bend Cylinder
Additional Information
Series: 607RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Radial Bend Cylinder |
| Color | - |
| Size / Dimension | 0.482"" Dia x 1.315"" L (12.25mm x 33.40mm) |
| Fuse Type | Cartridge, Ceramic |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Response Time | - |
| Approval Agency | cURus, TUV |
| Breaking Capacity @ Rated Voltage | 5kA AC, 10kA DC |
| Current Rating (Amps) | 63 A |
| Voltage Rating - AC | 500 V |
| Voltage Rating - DC | 500 V |
| Melting I²t | 7060.0 |
Request a Quote
Clients Also Buy
6071112110

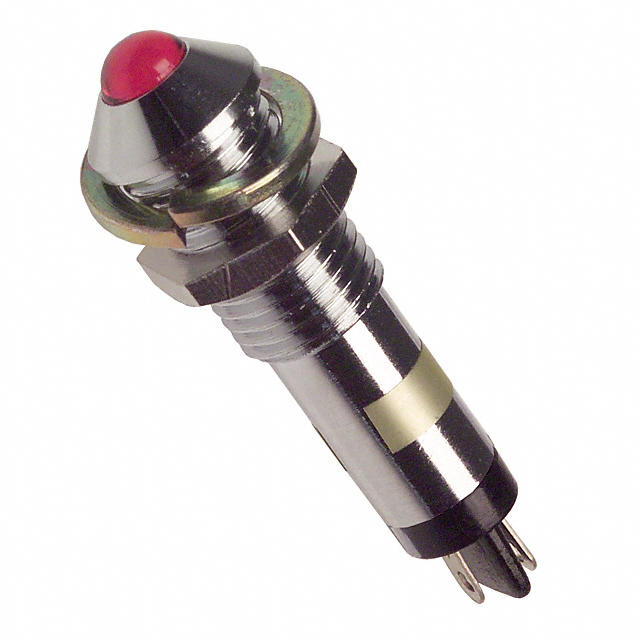

LED PMI 7MM RED 3.5MM PANEL
