0527050.UXTHP

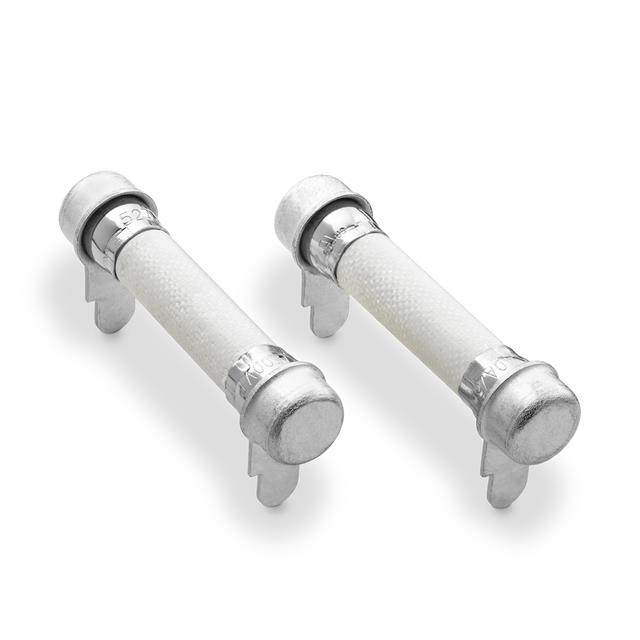

FUSE CERM 50A 305VAC 305VDC RADManufacturer: Littelfuse Inc.
Categories: Fuses
Quality Control: Learn More
50 A 305 V AC 305 V DC Fuse Cartridge, Ceramic Through Hole Radial Bend Cylinder
Additional Information
Series: 527RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Radial Bend Cylinder |
| Color | - |
| Size / Dimension | 0.293"" Dia x 1.352"" L (7.45mm x 34.35mm) |
| Fuse Type | Cartridge, Ceramic |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Response Time | Fast Blow |
| Approval Agency | cURus |
| Breaking Capacity @ Rated Voltage | 10kA |
| Current Rating (Amps) | 50 A |
| Voltage Rating - AC | 305 V |
| Voltage Rating - DC | 305 V |
| Melting I²t | 2460.0 |
