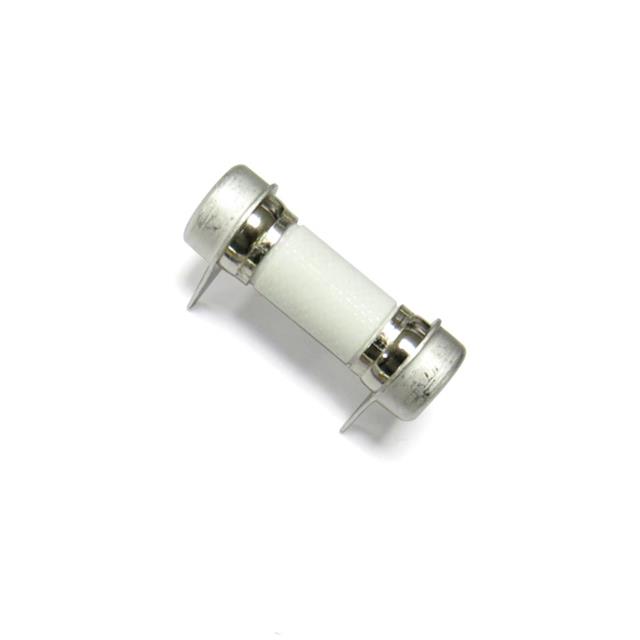

0526050.UXTHP
FUSE CERM 50A 500VAC 500VDC RADManufacturer: Littelfuse Inc.
Categories: Fuses
Quality Control: Learn More
50 A 500 V AC 500 V DC Fuse Cartridge, Ceramic Through Hole Radial Bend Cylinder
Additional Information
Series: 526RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Radial Bend Cylinder |
| Color | - |
| Size / Dimension | 0.442"" Dia x 1.378"" L (11.22mm x 35.00mm) |
| Fuse Type | Cartridge, Ceramic |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Response Time | Fast Blow |
| Approval Agency | cURus |
| Breaking Capacity @ Rated Voltage | 10kA |
| Current Rating (Amps) | 50 A |
| Voltage Rating - AC | 500 V |
| Voltage Rating - DC | 500 V |
| Melting I²t | 3850.0 |
Request a Quote
Clients Also Buy

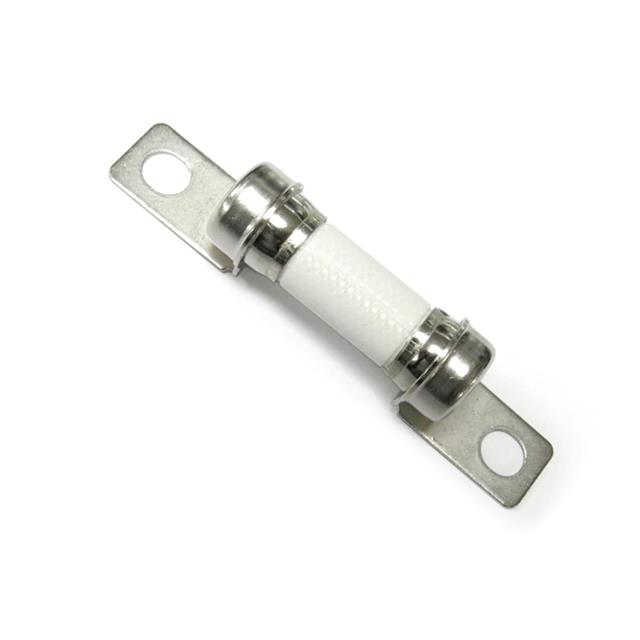

0526030.ZXISOP
