0487015.MXEP
FUSE CERM 15A 420VAC 420VDC 5X20Manufacturer: Littelfuse Inc.
Categories: Fuses
Quality Control: Learn More
15 A 420 V AC 420 V DC Fuse Cartridge, Ceramic Through Hole 5mm x 20mm (Axial)
Additional Information
Series: 487RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 5mm x 20mm (Axial) |
| Color | - |
| Size / Dimension | 0.217"" Dia x 0.846"" L (5.50mm x 21.50mm) |
| Fuse Type | Cartridge, Ceramic |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Response Time | Fast Blow |
| Approval Agency | TUV, UR |
| Breaking Capacity @ Rated Voltage | 300A AC, 200A DC |
| Current Rating (Amps) | 15 A |
| Voltage Rating - AC | 420 V |
| Voltage Rating - DC | 420 V |
| Melting I²t | 190.0 |
Request a Quote
Clients Also Buy

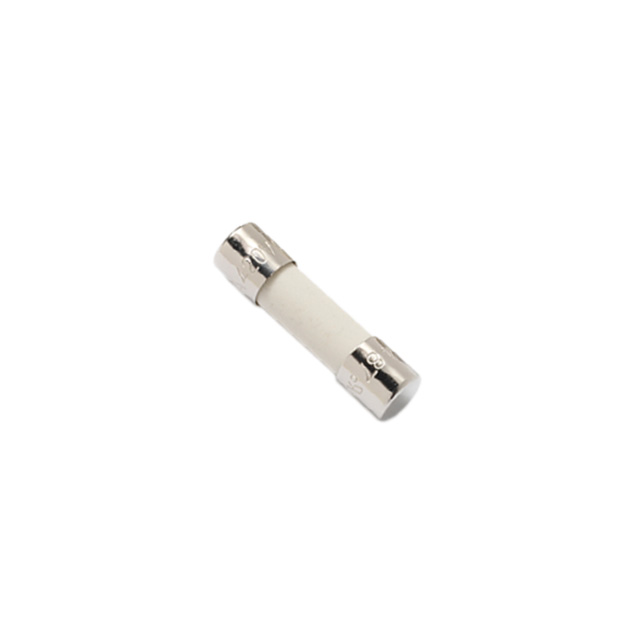

0487016.MXP
