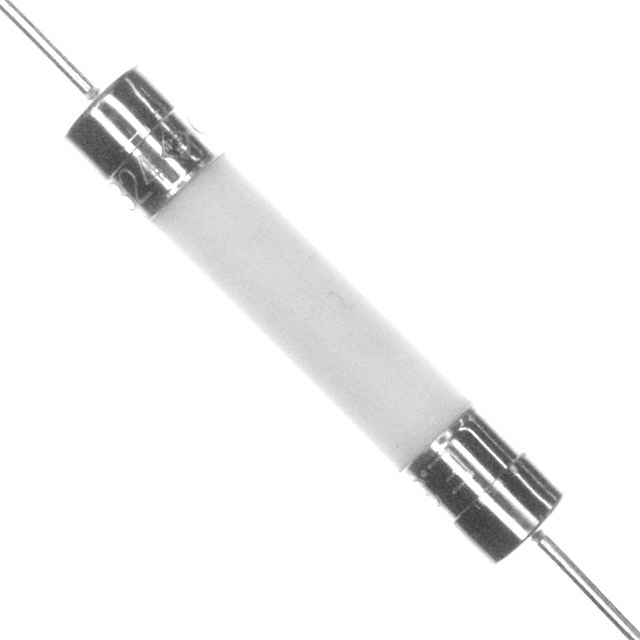

0324030.HXP
FUSE CERM 30A 250VAC 125VDC 3ABManufacturer: Littelfuse Inc.
Categories: Fuses
Quality Control: Learn More
30 A 250 V AC 125 V DC Fuse Cartridge, Ceramic Through Hole 3AB, 3AG, 1/4"" x 1-1/4"" (Axial)
Additional Information
Series: 324RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 3AB, 3AG, 1/4"" x 1-1/4"" (Axial) |
| Color | - |
| Size / Dimension | 0.275"" Dia x 1.288"" L (6.99mm x 32.72mm) |
| Fuse Type | Cartridge, Ceramic |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Response Time | Fast Blow |
| Approval Agency | CE, K-MARK, PSE, UL |
| Breaking Capacity @ Rated Voltage | 100A AC, 400A DC |
| Current Rating (Amps) | 30 A |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
| Melting I²t | 2490.0 |
