0230.250MXP
FUSE GLASS 250MA 250VAC 125VDCManufacturer: Littelfuse Inc.
Categories: Fuses
Quality Control: Learn More

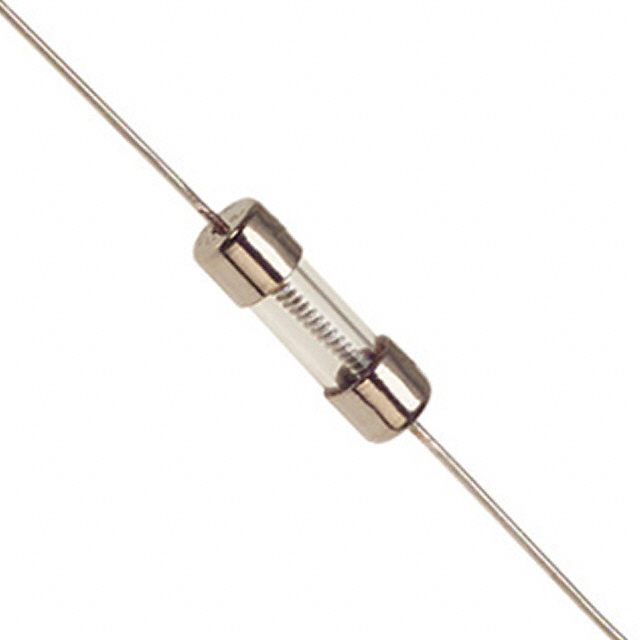

250 mA 250 V AC 125 V DC Fuse Cartridge, Glass Through Hole Cartridge, Non-Standard (Axial)
Additional Information
Series: 230RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Cartridge, Non-Standard (Axial) |
| Color | - |
| Size / Dimension | 0.177"" Dia x 0.571"" L (4.50mm x 14.50mm) |
| Fuse Type | Cartridge, Glass |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Response Time | Slow Blow |
| Approval Agency | CE, CSA, UL |
| Breaking Capacity @ Rated Voltage | 35A AC, 10kA DC |
| Current Rating (Amps) | 250 mA |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
| Melting I²t | 0.216 |
