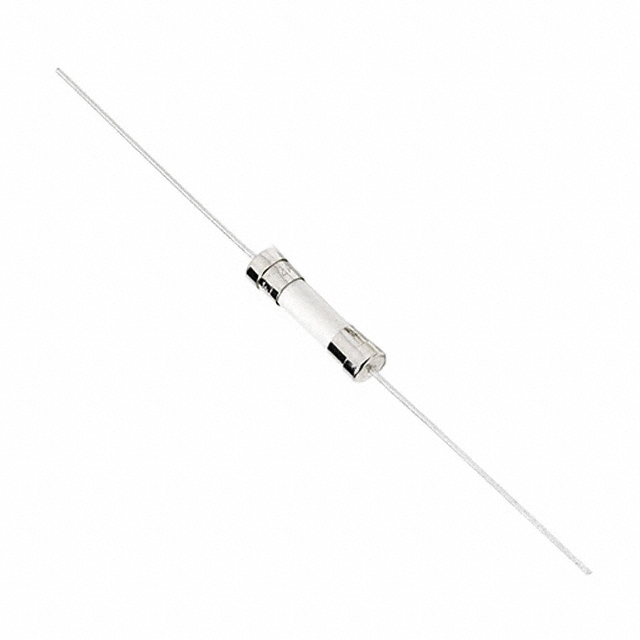

021612.5MXEP
FUSE CERAMIC 12.5A 250VAC 5X20MMManufacturer: Littelfuse Inc.
Categories: Fuses
Quality Control: Learn More
12.5 A 250 V AC DC Fuse Cartridge, Ceramic Through Hole 5mm x 20mm (Axial)
Additional Information
Series: 216RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 5mm x 20mm (Axial) |
| Color | - |
| Size / Dimension | 0.228"" Dia x 0.886"" L (5.80mm x 22.50mm) |
| Fuse Type | Cartridge, Ceramic |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Response Time | Fast Blow |
| Approval Agency | CE, CSA, PSE, TUV, UR |
| Breaking Capacity @ Rated Voltage | 1.5kA |
| Current Rating (Amps) | 12.5 A |
| Voltage Rating - AC | 250 V |
| Melting I²t | 235.0 |
