LSIC2SD120E40CCA
DIODE ARR SIC SCHOT 1200V TO247Manufacturer: Littelfuse Inc.
Categories: Diode Arrays
Quality Control: Learn More

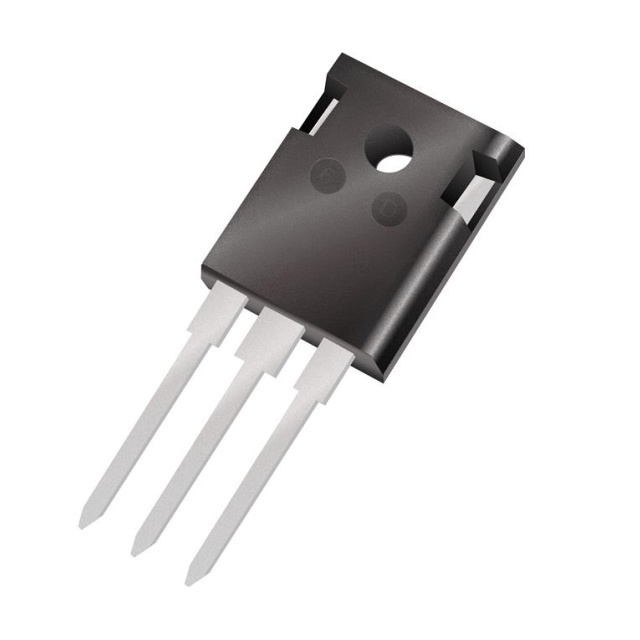

Littelfuse Inc. LSIC2SD120E40CCA is a Silicon Carbide Schottky Diode Array featuring a common cathode configuration. This through-hole component, housed in a TO-247-3 package, offers a maximum DC reverse voltage of 1200 V and an average rectified current of 55 A per diode. It exhibits a low forward voltage of 1.8 V at 20 A and a reverse leakage of 100 µA at 1200 V. Designed with no recovery time for currents greater than 500 mA (Io), it operates across a junction temperature range of -55°C to 175°C. This device is AEC-Q101 qualified, making it suitable for automotive applications.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 55A (DC) |
| Supplier Device Package | TO-247 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Grade | Automotive |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 20 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 1200 V |
| Qualification | AEC-Q101 |
