DST30100C
DIODE ARR SCHOT 100V 10A TO220ABManufacturer: Littelfuse Inc.
Categories: Diode Arrays
Quality Control: Learn More
Diode Array 1 Pair Common Cathode 100 V 10A Through Hole TO-220-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 10A |
| Supplier Device Package | TO-220AB |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 750 mV @ 15 A |
| Current - Reverse Leakage @ Vr | 500 µA @ 100 V |
Request a Quote
Clients Also Buy
DURF3060CT
DIODE ARRAY GP 600V 15A ITO220AB
MD16130S-BM2MM
DIODE MODULE GP 1600V 130A S3

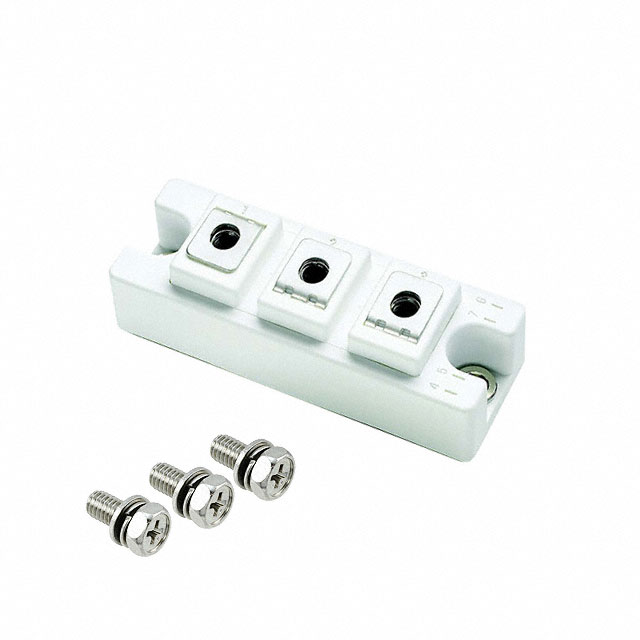

MD18130S-BM2MM
