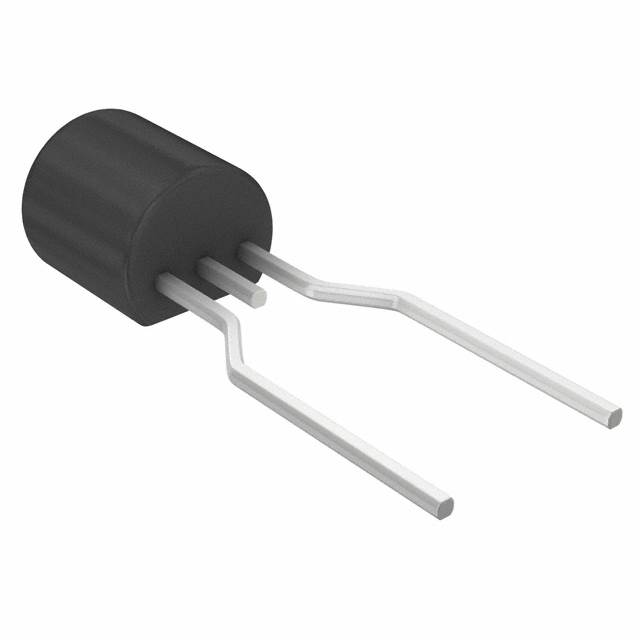

K1200E70RP
SIDAC 110-125V 1A TO92Manufacturer: Littelfuse Inc.
Categories: DIACs, SIDACs
Quality Control: Learn More
Littelfuse Inc. SIDAC K1200E70RP is a bidirectional overvoltage protection device designed for AC power line applications. This thyristor component operates with a breakover voltage range of 110 to 125V and a peak output current capability of 1A. The K1200E70RP features a low breakover current of 10 µA and a holding current of 150 mA (max). It is housed in a standard TO-92 package (TO-226-2, TO-92-2) with formed leads, facilitating surface-mount assembly when supplied on tape and reel. The device can operate reliably within an extended temperature range of -40°C to 125°C (TJ). This component is commonly utilized in power supply protection, telecommunications equipment, and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-226-2, TO-92-2 (TO-226AC) (Formed Leads) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 150 mA |
| Voltage - Breakover | 110 ~ 125V |
| Current - Breakover | 10 µA |
| Supplier Device Package | TO-92 |
| Current - Peak Output | 1 A |
