K0900S
SIDAC 79-97V 1A DO214Manufacturer: Littelfuse Inc.
Categories: DIACs, SIDACs
Quality Control: Learn More
The Littelfuse Inc. K0900S is a SIDAC thyristor designed for robust overvoltage protection applications. This DO-214AA (SMB) packaged device features a breakover voltage range of 79V to 97V, with a low breakover current of 10 µA. The K0900S exhibits a hold current of 150 mA (max) and can handle a peak output current of 1A, making it suitable for protecting sensitive downstream circuitry from transient overvoltages. Its operating temperature range is -40°C to 125°C (TJ). Common industry applications include telecommunications, industrial control systems, and power supply protection. This component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-214AA, SMB |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 150 mA |
| Voltage - Breakover | 79 ~ 97V |
| Current - Breakover | 10 µA |
| Supplier Device Package | DO-214 |
| Current - Peak Output | 1 A |
Request a Quote
Clients Also Buy
K2300S1URP
SIDAC UNI 220-240V 1A DO214AC

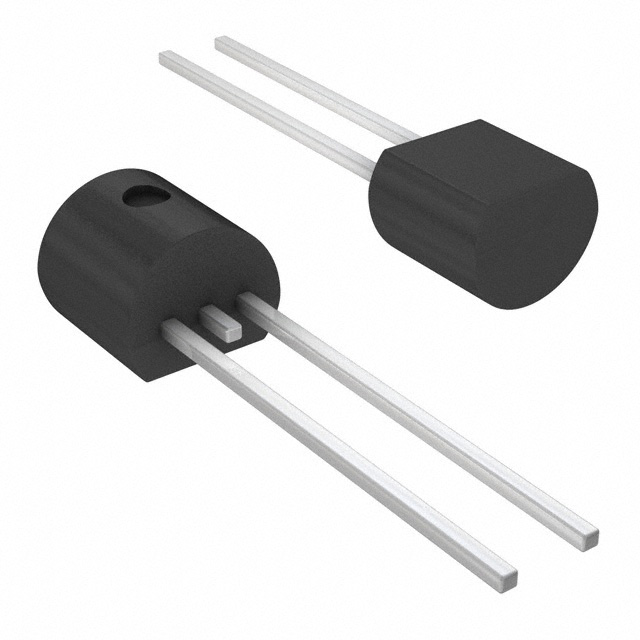

K2400EH70RP3
