LTW-C192TL5
LED WHITE CHIP SMDManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

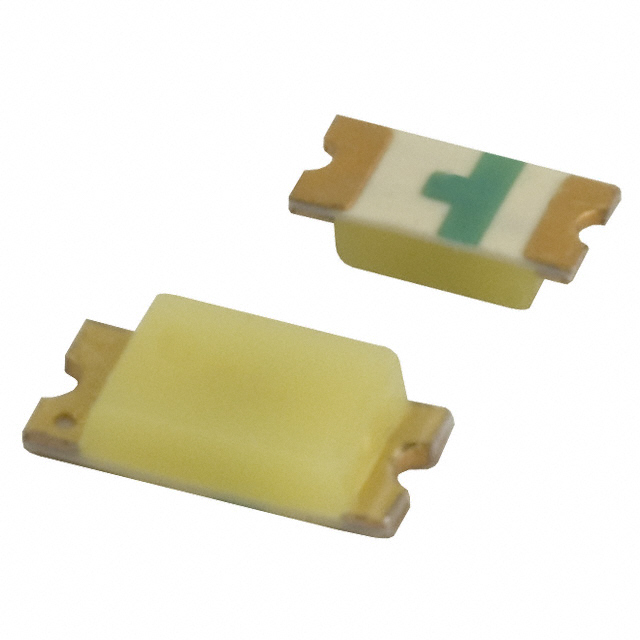

Lite-On Inc. LTW-C192TL5 is a white LED indication component, presented in a 0603 (1608 Metric) surface-mount package. This discrete LED features a typical forward voltage of 2.93V and operates at a test current of 5mA, producing a luminous intensity of 113mcd. The component has a rectangular lens measuring 1.15mm x 0.80mm with a flat top, and a yellow lens color. Its compact dimensions are 1.60mm L x 0.80mm W, with a maximum height of 0.40mm. The viewing angle is 130°. This component is commonly utilized in industrial automation, medical devices, and consumer electronics for status indication and general lighting applications. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | White |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 113mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.93V |
| Lens Color | Yellow |
| Current - Test | 5mA |
| Viewing Angle | 130° |
| Height (Max) | 0.40mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | Chip LED |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.15mm x 0.80mm |
