LTW-42NC5
LED WHITE CLEAR T-1 T/HManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

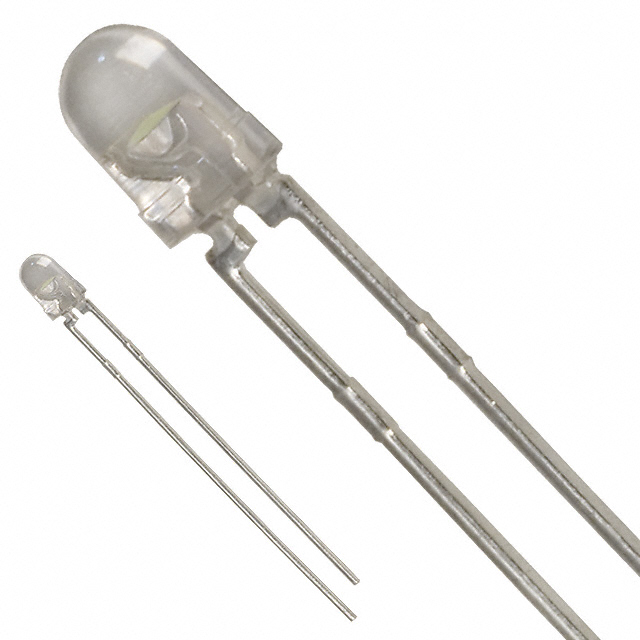

Lite-On Inc. LTW-42NC5 is a white, clear, through-hole mounted LED with a T-1 radial package. This discrete LED indication component operates with a typical forward voltage (Vf) of 3.5V and a standard test current of 20mA. It features a colorless, clear lens with a domed top, measuring 3mm in diameter. The LTW-42NC5 delivers a luminous intensity of 1100mcd with a viewing angle of 45°. This component is suitable for various industrial applications requiring reliable visual indication. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | White |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 1100mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.5V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 45° |
| Height (Max) | 5.85mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
