LTW-420C5
LED WHITE CLEAR T-1 T/HManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

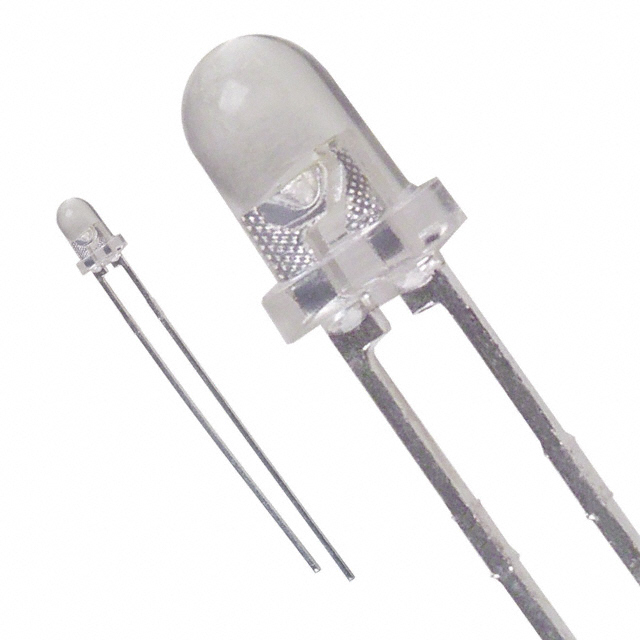

Lite-On Inc. LTW-420C5 is a white, clear, T-1 through-hole mounted LED designed for discrete indication applications. This component features a typical forward voltage of 3.6V and operates at a standard test current of 20mA, achieving a high luminous intensity of 2600mcd. The clear, colorless lens has a domed top and a viewing angle of 25°, suitable for precise visual feedback. Its radial package and through-hole mounting facilitate integration into various PCB designs. The LTW-420C5 is widely used in industrial automation, consumer electronics, and medical equipment where reliable visual status indication is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | White |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 2600mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 25° |
| Height (Max) | 5.25mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
