LTW-337C5
LED WHITE CLEAR T-1 3/4 T/HManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

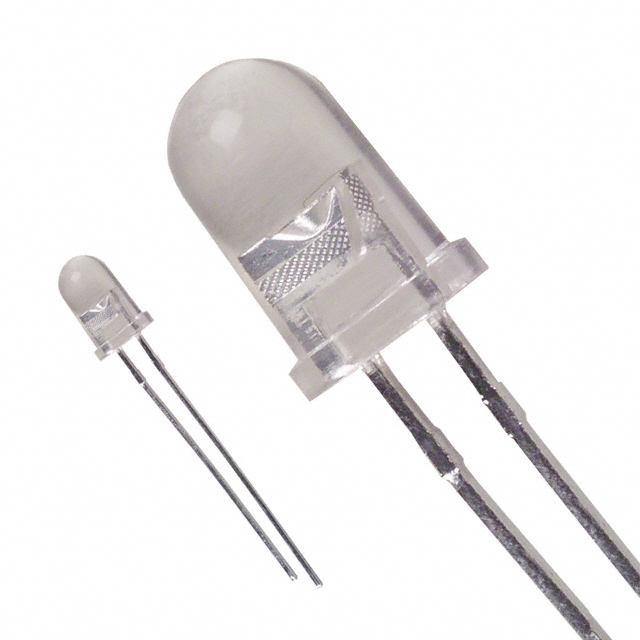

Lite-On Inc. LTW-337C5 is a white, clear, through-hole LED, designed for discrete indication applications. This T-1 3/4 package features a standard radial configuration with a domed top lens, measuring 5mm in diameter. It operates with a typical forward voltage of 3.6V and a test current of 20mA, achieving a luminous intensity of 4800mcd. The viewing angle is specified at 20°. This component is commonly utilized in industrial control systems, consumer electronics, and automotive lighting applications that require reliable visual feedback or illumination. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | White |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 4800mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 20° |
| Height (Max) | 8.60mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
