LTW-2V3C5
LED WHITE CLEAR T-1 3/4 T/HManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

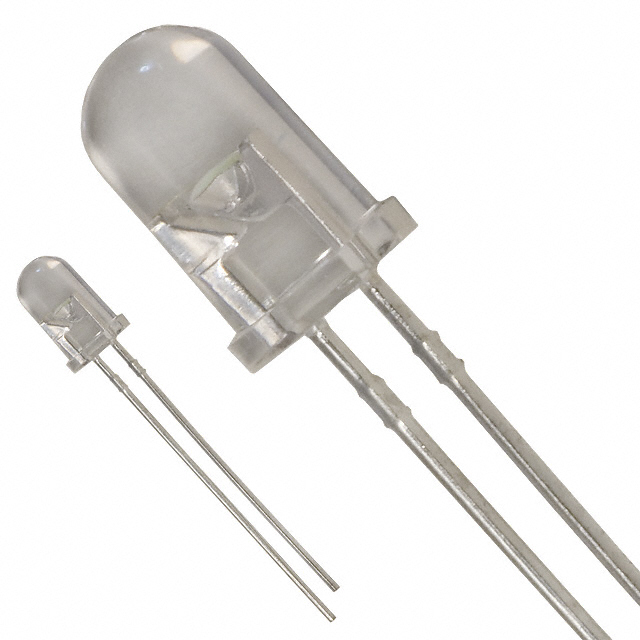

The Lite-On Inc. LTW-2V3C5 is a through-hole mounted white LED designed for indication applications. This discrete component features a clear, colorless lens with a domed top, measuring 5mm (T-1 3/4). It offers a typical forward voltage of 3.5V and operates at a test current of 20mA, producing a luminous intensity of 2600mcd. The viewing angle is 30°. This component is commonly utilized in industrial control systems, consumer electronics, and medical devices where reliable visual feedback is critical. The radial package is supplied in bulk.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | White |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 2600mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.5V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 30° |
| Height (Max) | 8.60mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
