LTW-191TS5
LED WHITE 0603 SMDManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

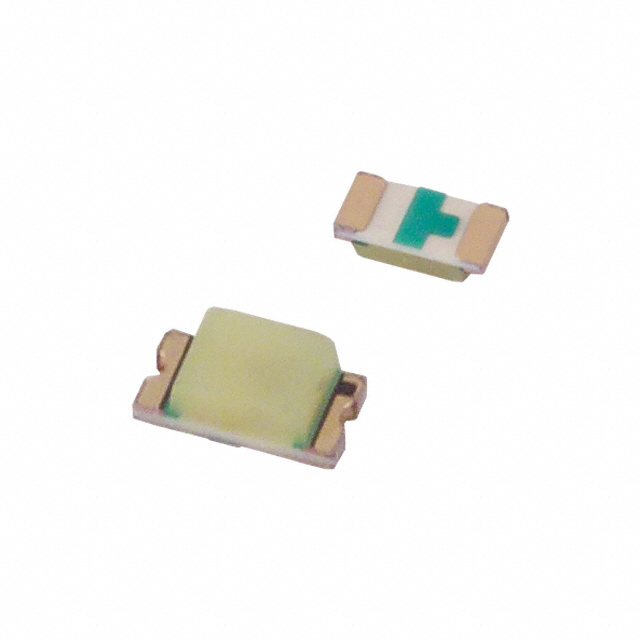

Lite-On Inc. LTW-191TS5 is a white, 0603 (1608 Metric) surface mount LED designed for discrete indication applications. This component features a typical forward voltage of 2.95V and operates at a test current of 5mA, delivering a millicandela rating of 78mcd. The LED has a thin profile with a maximum height of 0.55mm and a compact footprint of 1.60mm L x 0.80mm W. The lens is rectangular with a flat top, yellow in color, and measures 1.10mm x 0.80mm. It offers a wide viewing angle of 130°. The LTW-191TS5 is supplied in Tape & Reel packaging. This component is commonly utilized in consumer electronics, industrial control systems, and medical devices where reliable visual feedback is critical.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | White |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 78mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.95V |
| Lens Color | Yellow |
| Current - Test | 5mA |
| Viewing Angle | 130° |
| Height (Max) | 0.55mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | SMD |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 0.80mm |
