LTW-102C4
LED WHITE CLEAR T-1 3/4 T/HManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

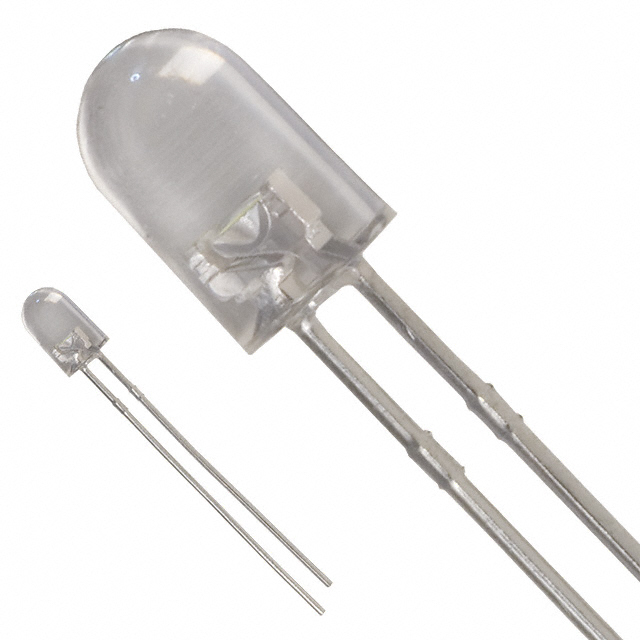

Lite-On Inc. LTW-102C4 is a through-hole mounted white LED with a clear, domed top lens, measuring T-1 3/4. This discrete LED features a typical forward voltage of 3.5V and operates at a test current of 20mA, producing a high luminous intensity of 6000mcd. The viewing angle is rated at 20 degrees. This component is commonly utilized in industrial automation, consumer electronics, and medical equipment for status indication. Supplied in bulk packaging, the LTW-102C4 offers reliable performance for various electronic design requirements.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | White |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 6000mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.5V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 20° |
| Height (Max) | 7.20mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
