LTW-010DCG-S1
LED WHITE 2PLCC SMD R/AManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

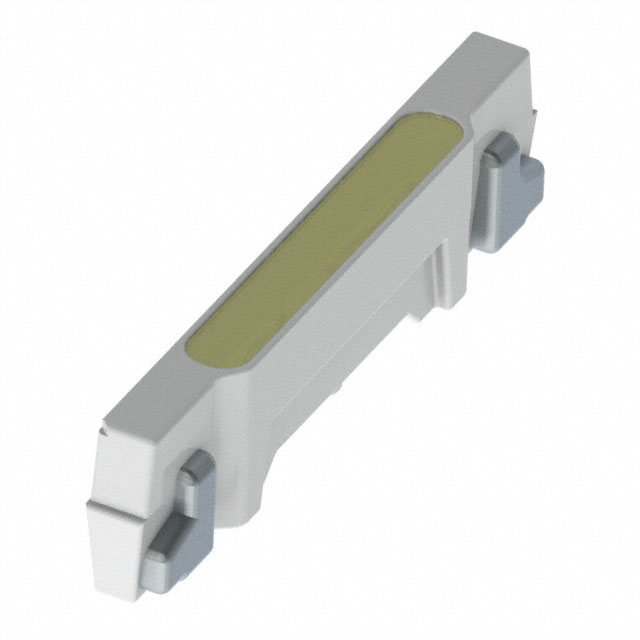

Lite-On Inc. LTW-010DCG-S1 is a white, 2-PLCC surface mount, right-angle LED intended for discrete indication applications. This component features a typical forward voltage of 3.1V with a test current of 20mA, yielding a millicandela rating of 2200mcd. The lens is yellow with a rectangle, flat-top style. With dimensions of 3.70mm L x 0.90mm W and a maximum height of 0.43mm, it is supplied in a 2-SMD, J-Lead package, presented on tape and reel. The viewing angle is 115°. This LED is commonly utilized in industrial automation, consumer electronics, and medical device sectors for status indication.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Color | White |
| Size / Dimension | 3.70mm L x 0.90mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 2200mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.1V |
| Lens Color | Yellow |
| Current - Test | 20mA |
| Viewing Angle | 115° |
| Height (Max) | 0.43mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | - |
