LTST-T670GKT
LED GREEN CLEAR 2PLCC SMDManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

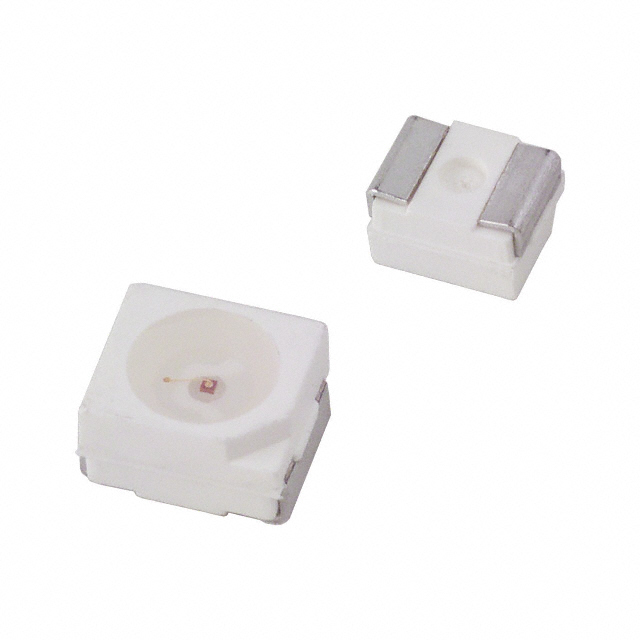

Lite-On Inc. LTST-T670GKT is a green LED indication component designed for surface mounting. This 2-SMD, J-Lead package features a clear, colorless lens and a 569nm dominant wavelength, with a peak wavelength of 565nm. The LED provides a typical forward voltage of 2.1V and a luminous intensity of 20mcd at a test current of 10mA. Its 3.20mm L x 2.70mm W dimensions and 2.05mm maximum height make it suitable for compact designs. With a 120° viewing angle, this component is utilized in applications requiring visual status indication across various industries including consumer electronics, industrial automation, and medical devices. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Color | Green |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 20mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Colorless |
| Current - Test | 10mA |
| Viewing Angle | 120° |
| Height (Max) | 2.05mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | 569nm |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | - |
