LTST-S320TBKT
LED BLUE CLEAR 1208 SMD R/AManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

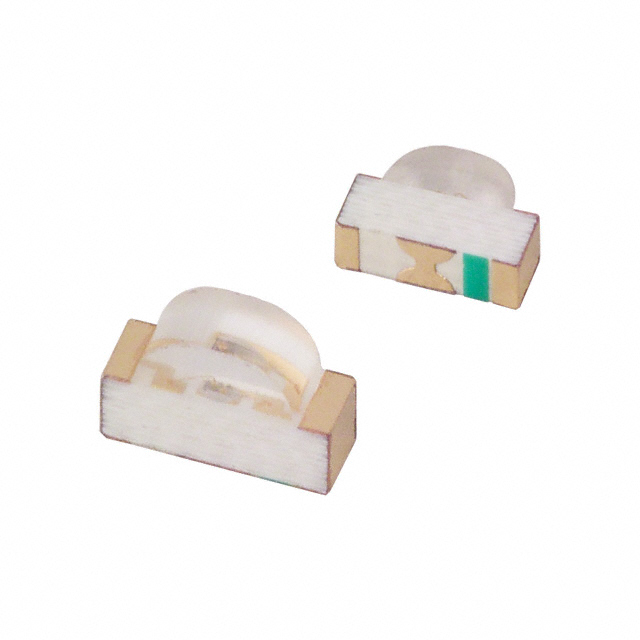

Lite-On Inc. LTST-S320TBKT, a blue LED designed for discrete indication. This 1208 SMD component features a clear, colorless lens with a domed top measuring 2.00mm x 1.00mm, offering a wide 130° viewing angle. Operating with a typical forward voltage of 3.4V and a test current of 20mA, it achieves a millicandela rating of 30mcd. The dominant wavelength is 470nm, with a peak wavelength of 468nm. This surface mount, right-angle device is supplied in a 2-SMD, No Lead package and comes on a Tape & Reel. Its compact 3.00mm L x 2.00mm W footprint and right-angle mounting are suitable for applications in consumer electronics, industrial control, and automotive systems where reliable visual feedback is required.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | Blue |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 30mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.4V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 130° |
| Height (Max) | 1.00mm |
| Wavelength - Peak | 468nm |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | 1208 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
