LTST-S320KYKT
LED AMBER CLEAR CHIP SMD R/AManufacturer: Lite-On Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

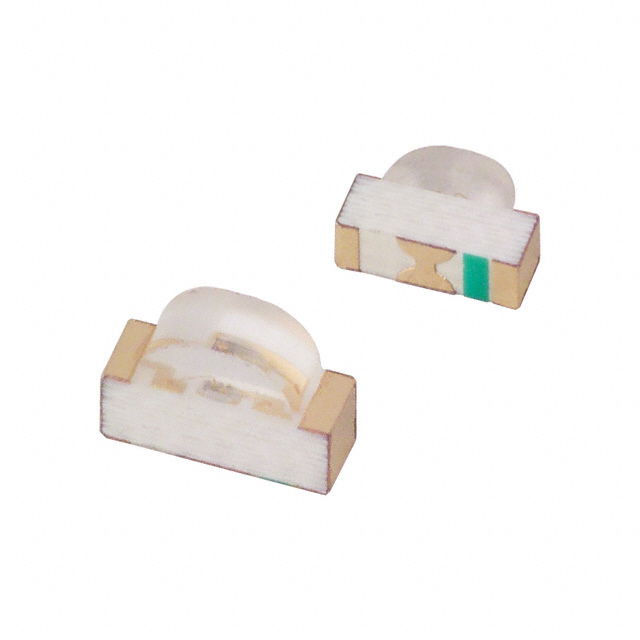

Lite-On Inc. LTST-S320KYKT is a surface-mount, right-angle amber LED designed for discrete indication. This 2-SMD, No Lead component features a clear, colorless lens with a domed top, measuring 2.00mm x 1.00mm. The LED emits a dominant wavelength of 592nm and a peak wavelength of 595nm, providing a millicandela rating of 50mcd at a typical forward voltage of 2V and test current of 20mA. Its dimensions are 3.00mm L x 2.00mm W, with a maximum height of 1.00mm. The viewing angle is 130°. This component is supplied in Tape & Reel (TR) packaging and is commonly utilized in industrial automation, consumer electronics, and automotive applications for status indication.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | Amber |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 50mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 130° |
| Height (Max) | 1.00mm |
| Wavelength - Peak | 595nm |
| Wavelength - Dominant | 592nm |
| Supplier Device Package | Chip LED |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
